WALL PLUS
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM | 1 NARROW BEAM
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM | 1 NARROW BEAM
10W
Power280lm (260lm/20lm)
Luminous flux90° / 2°
Beam anglePATENTED PRODUCT
Designed with straight lines, these wall lights feature accurate light beams that provide a stylish lighting. With super defined 2º and 90ª effects and a recessed light source to reduce glare, it’s ideal to highlight walls and outdoor structures.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STL22736PTO/30 | Black | 3000K | 280lm (260lm/20lm) |
| STL22736BR/30 | White | 3000K | 280lm (260lm/20lm) |
Video
Photos
Graphics

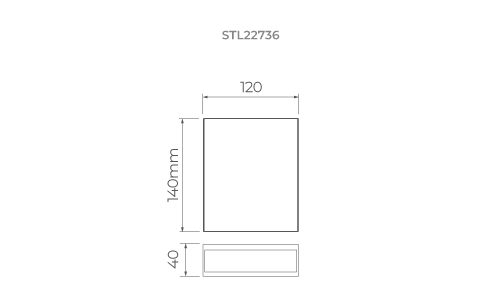

Technical drawing
Documents
IES - STL22736PTO-30 - WALL PLUS - 2 FACHOS.zip
STL22736BR_30_STL22736PTO_30.skp
STELLA - STL22736PTO-30 - PACK - SKP.zip
Manual_Wall_Plus_V2.pdf
STL22736BR_PTO_30.rfa
IES - STL22736BR-30 - WALL PLUS - 2 FACHOS.zip
STELLA - STL22736BR-30 - PACK - SKP.zip
STELLA - STL22736PTO-30-EU - PACK - SKP.zip
STELLA - STL22736BR-30-EU - PACK - SKP.zip
Observations
Built-in driver.
