Wall Max
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
15W
Power1200lm (600lm/600lm)
Luminous flux90° / 90°
Beam anglePATENTED PRODUCT
To produce an optimal light effect, this wall light features a distinguished construction, more robust and built in aluminum. The long reach of the light beam is ideal for façade applications, producing super def ined 4° and 90° effects. All this with a recessed light source and the signature visual comfort provided by Stella products.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STL22737PTO/30 | Black | 3000K | 1200lm (600lm/600lm) |
| STL22737BR/30 | White | 3000K | 1200lm (600lm/600lm) |
3D
Click to move image
Video

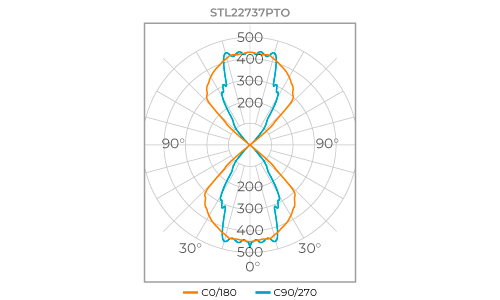

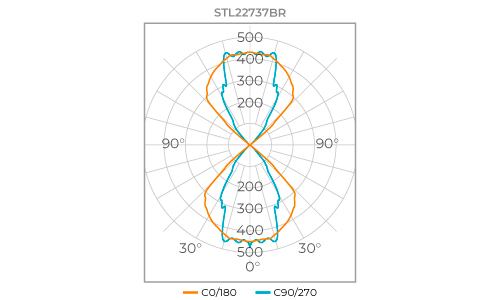

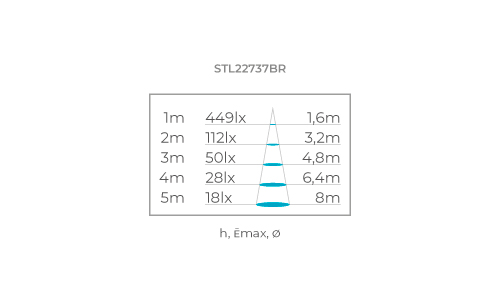

Graphics

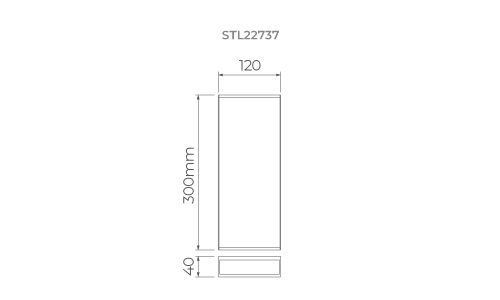

Technical drawing
Documents
Photos
Not added.
Observations
Built-in driver.
