Wall Mini
WALL-MOUNTED EFFECT LIGHT | 2 NARROW BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 NARROW BEAMS
5W
Power20lm (10lm/10lm)
Luminous flux4° / 4°
Beam anglePATENTED PRODUCT
Wall-Mounted light with a striking light effect in a compact design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH9732PTO/30 | Black | 3000K | 20lm (10lm/10lm) |
| STH9732BR/30 | White | 3000K | 20lm (10lm/10lm) |
3D
Click to move image

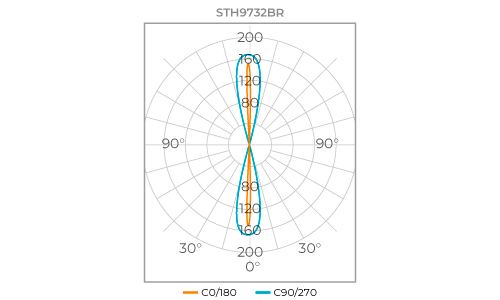

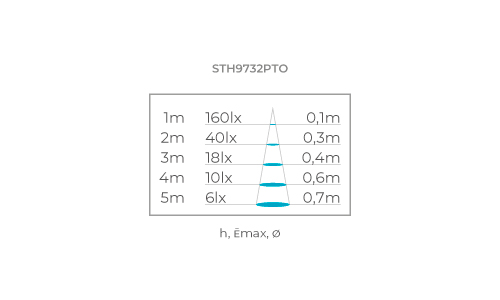

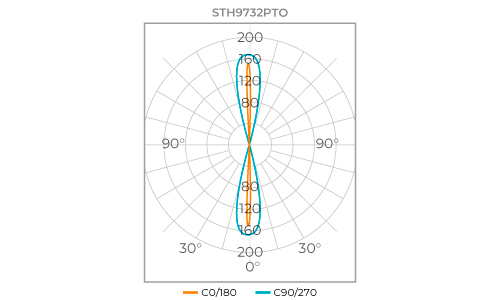

Graphics
Technical drawing
Documents
Observations
Indicated accessory: Mini Junction Box - STH7799, sold separately.
Built-in driver.
