Reflex
Wall-mounted Indirect Light | 20cm
Wall-mounted Indirect Light | 20cm
6W
Power500lm
Luminous flux110° / 110°
Beam anglePATENTED PRODUCT
Stella’s Reflex wall-mounted light is sophisticated, timeless and brings harmony to environments. The product has a high luminous flux of indirect light, which reduces glare effects, providing greater visual comfort.
| Luminous efficacy | 58lm/W to 83lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,6 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH21740PTO/30 | Black | 3000K | 400lm |
| STH21740BR/30 | White | 3000K | 500lm |
| STH21740BR/27 | White | 2700K | 450lm |
| STH21740PTO/27 | Black | 2700K | 350lm |
Video

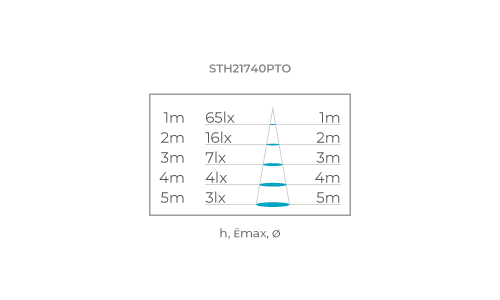

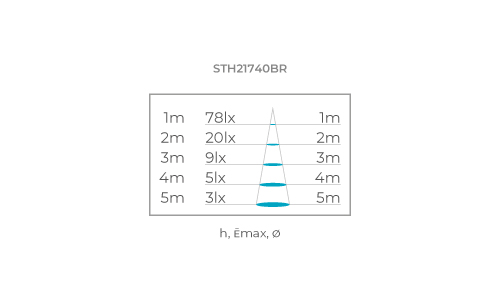

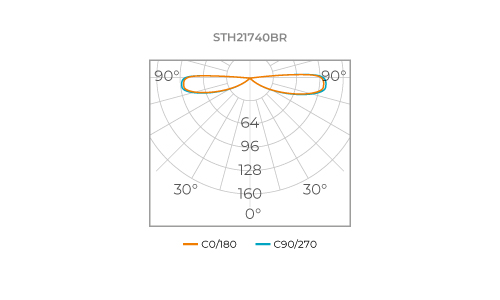

Graphics

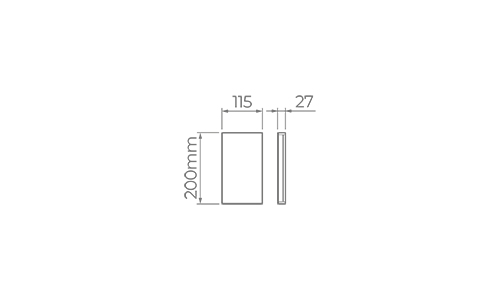

Technical drawing
Documents
STELLA - STH21740PTO-30 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STELLA - STH21740BR-27-30 - STH21740PTO-27-30 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm_PACK.zip
STH21740BR_27_30_STH21740PTO_27_30.skp
Manual Arandela Reflex STH9740 STH9741 STH21740_V7.pdf
STH21740BR_27_PTO_27_STH21740BR_30_PTO_30.rfa
STELLA - STH21740BR-30 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STELLA - STH21740BR-27 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STELLA - STH21740PTO-27 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
Observations
Built-in driver.
