Logo da Stella

Wall Mini

WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS

5W

Power

200lm (100lm/100lm)

Luminous flux

70° / 70°°

Beam angle
PATENTED PRODUCT
sth9730pto301.jpeg sth9730br301.jpeg sth9730desenho500x300.jpeg

Wall-Mounted light with a striking light effect in a compact design.

CRI (Color rendering index) >80
Ingress protection rating (IP) IP65
Power factor >0,92
Lifespan 25000h
Prevailing material Polycarbonate
Warranty 2 years
Compare icon de compartilhar
STH9730PTO/30 Black 3000K 200lm (100lm/100lm)
STH9730BR/30 White 3000K 200lm (100lm/100lm)

Visualização 360 3D

Visualização 360 Click to move image

Video

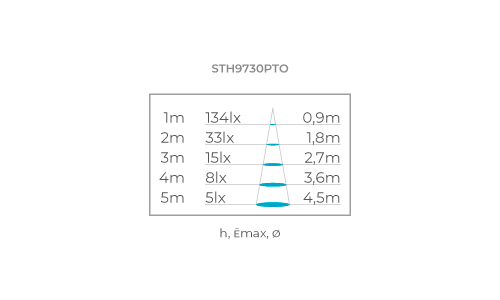

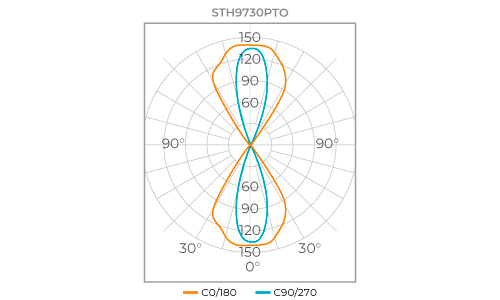

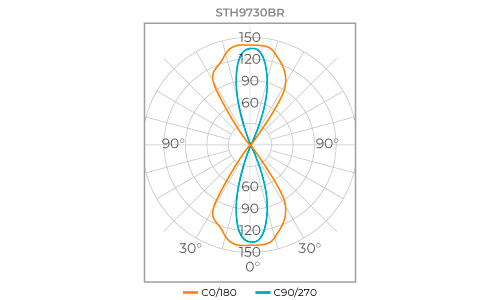

Graphics

Wall Mini Wall Mini Wall Mini Wall Mini

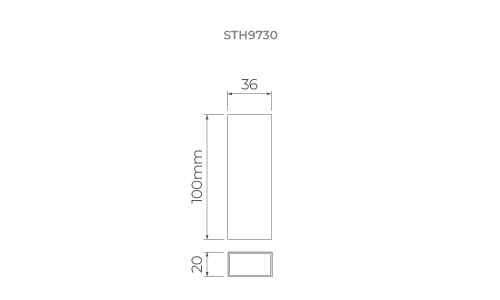

Technical drawing

Wall Mini

Documents

STELLA - STH9730BR-30 - STH9730PTO-30 - WALL MINI - FACHO ABERTO_PACK.zip

STH9730BR_30_STH9730PTO_30.skp

Manual Arandela Wall Mini Wall Micro STH9730BR STH9730PTO STH9731BR STH9731PTO STH9732BR STH9732PTO STH21728BR STH21728PTO STH21729BR STH21729PTO_V7.pdf

STH9730BR_30_STH9730PTO_30.rfa

Photos

Not added.

https://stella.com.br:443 en

Observations

Indicated accessory: Mini Junction Box - STH7799, sold separately.

Built-in driver.
