Ice
WALL-MOUNTED LIGHT | Square
WALL-MOUNTED LIGHT | Square
7,5W
Power740lm
Luminous flux120°
Beam anglePATENTED PRODUCT
The Ice wall-mounted light deliver a perfect light distribution throughout its whole body, in a clean and elegant design, providing a comfortable and homogeneous lighting. Product with IP65 Protection Index.
| Luminous efficacy | 98lm/W to 104lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL21700BR/30 | White | 3000K | 740lm |
| STL21700BR/40 | White | 4000K | 760lm |
| STL21700BR/50 | White | 5000K | 780lm |
Video
Graphics

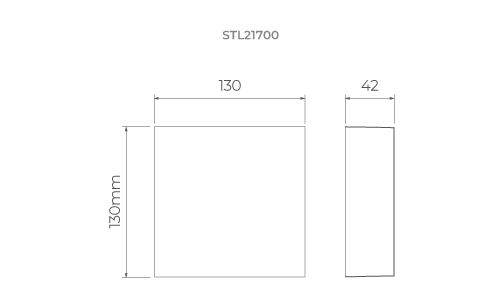

Technical drawing
Documents
STELLA - STL21700BR-30 - ICE ARANDELA DE LUZ GERAL QUADRADA.ies
STELLA - STL21700BR-30-40-50 - ICE ARANDELA DE LUZ GERAL QUADRADA_PACK.zip
STL21700BR_30_40_50.skp
Manual 31x11,5 Arandela Ice STL21700 STL21701_V3.pdf
STL21700BR_30_40_50.rfa
STELLA - STL21700BR-40 - ICE ARANDELA DE LUZ GERAL QUADRADA.ies
STELLA - STL21700BR-50 - ICE ARANDELA DE LUZ GERAL QUADRADA.ies
Photos
Not added.
Observations
Built-in driver.
STL21700BR/50 - Product available while stocks last.
