EFFEKT
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
8W
Power480lm (240lm/240lm)
Luminous flux90° / 90°
Beam angle
Effekt can be applied in external as well as internal spaces, since it has IP65 Ingress Protection. The product's light effect draws shapes on the walls and enrich all spaces. This Wall-Mounted Effect Light offers options with one wide beam, two wide beams or one wide + one narrow beam, in black or white finishes.
| Luminous efficacy | 60lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,4 |
| Lifespan | 20000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH6731/30 | Black | 3000K | 480lm (240lm/240lm) |
| STH6730/30 | White | 3000K | 480lm (240lm/240lm) |
Video

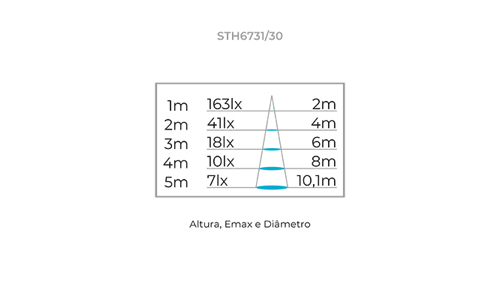

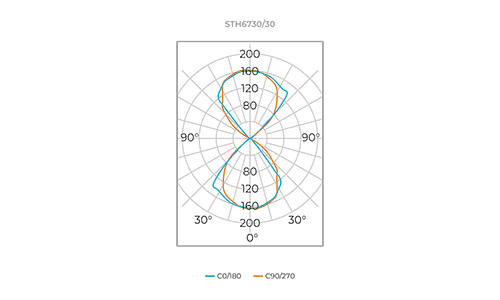

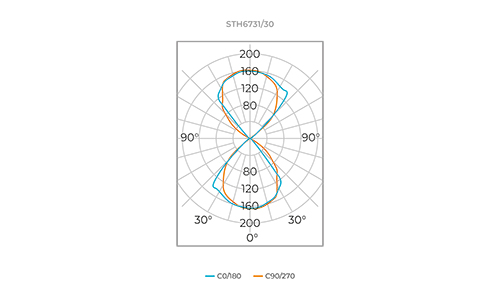

Graphics

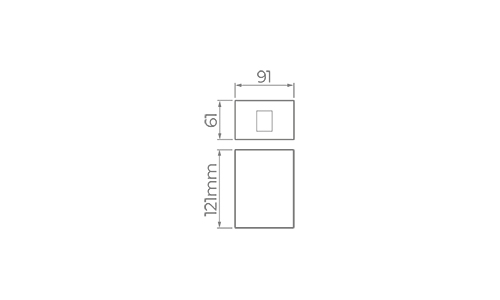

Technical drawing
Documents
Observations
Built-in driver.
