Wall Plus
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM
5W
Power260lm
Luminous flux90°
Beam anglePATENTED PRODUCT
Designed with straight lines, these wall lights feature accurate light beams that provide a stylish lighting. With super defined 2º and 90ª effects and a recessed light source to reduce glare, it’s ideal to highlight walls and outdoor structures.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL22733PTO/30 | Black | 3000K | 260lm |
| STL22733BR/30 | White | 3000K | 260lm |
3D
Click to move image
Video
Graphics

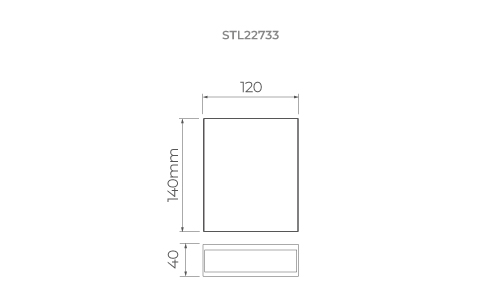

Technical drawing
Documents
Photos
Not added.
Observations
Built-in driver.
