Line
WALL LIGHT | PATH-LIGHT
WALL LIGHT | PATH-LIGHT
6W
Power40lm
Luminous flux4°
Beam anglePATENTED PRODUCT
The Line series is distinguished by its narrow and intense light beam, that provides a continuous and homogeneous light effect for both of Line’s models.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
| Operation temperature | -20 ~ 60°C |
X
| STH9725PTO/30 | Black | 100-240Vac | 3000K | 40lm |
| STH9725BR/30 | White | 100-240Vac | 3000K | 40lm |
Photos

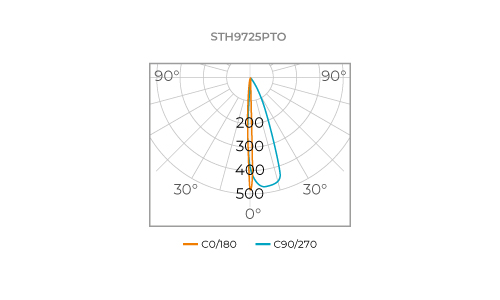

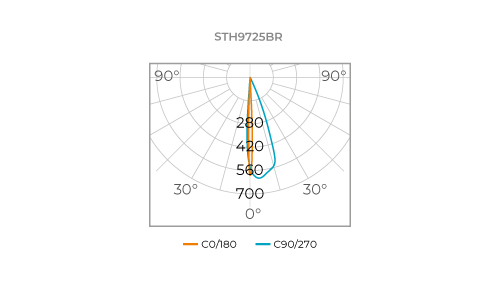

Graphics

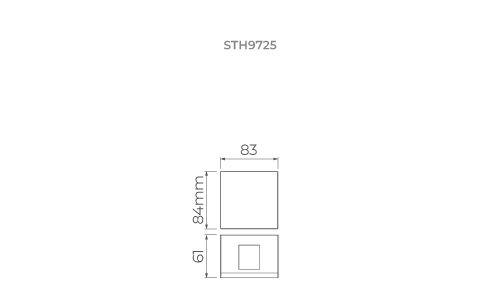

Technical drawing
