WALL MAX
WALL-MOUNTED EFFECT LIGHT | 2 NARROW BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 NARROW BEAMS
15W
Power90lm (45lm/45lm)
Luminous flux4° / 4°
Beam anglePATENTED PRODUCT
To produce an optimal light effect, this wall light features a distinguished construction, more robust and built in aluminum. The long reach of the light beam is ideal for façade applications, producing super def ined 4° and 90° effects. All this with a recessed light source and the signature visual comfort provided by Stella products.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Aluminum |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STL22738PTO/30 | Black | 3000K | 90lm (45lm/45lm) |
| STL22738BR/30 | White | 3000K | 90lm (45lm/45lm) |
Video
Photos
Graphics

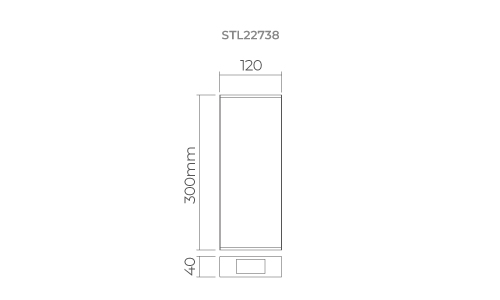

Technical drawing
Documents
IES - STL22738PTO-30 - WALL MAX - 2 FACHOS.zip
STL22738BR_30_STL22738PTO_30.skp
STELLA - STL22738PTO-30 - PACK - SKP.zip
Manual_Wall_Max_V2.pdf
STL22738BR_PTO_30.rfa
IES - STL22738BR-30 - WALL MAX - 2 FACHOS.zip
STELLA - STL22738BR-30 - PACK - SKP.zip
STELLA - STL22738PTO-30-EU - PACK - SKP.zip
STELLA - STL22738BR-30-EU - PACK - SKP.zip
Observations
Built-in driver.
