Wall Plus
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
10W
Power520lm (260lm/260lm)
Luminous flux90° / 90°
Beam anglePATENTED PRODUCT
Designed with straight lines, these wall lights feature accurate light beams that provide a stylish lighting. With super defined 2º and 90ª effects and a recessed light source to reduce glare, it’s ideal to highlight walls and outdoor structures.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL22734PTO/30 | Black | 3000K | 520lm (260lm/260lm) |
| STL22734BR/30 | White | 3000K | 520lm (260lm/260lm) |
3D
Click to move image
Video
Graphics

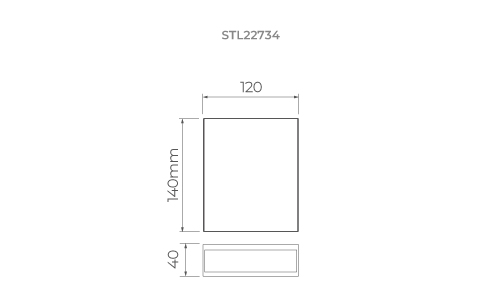

Technical drawing
Documents
STL22734PTO-30 - WALL PLUS - 2 FACHOS ABERTOS - FACHO 2.ies
STL22734PTO-30 - WALL PLUS - 2 FACHOS ABERTOS - FACHO 1.ies
STELLA - STL22734BR-30 - STL22734PTO-30 - WALL PLUS_PACK.zip
STL22734BR_30_STL22734PTO_30.skp
Manual Arandela de Efeito Wall Plus_STL22733_STL22734_STL22735_STL22736_V1-0.pdf
STL22734BR_PTO_30.rfa
STL22734BR-30 - WALL PLUS - 2 FACHOS ABERTOS - FACHO 2.ies
STL22734BR-30 - WALL PLUS - 2 FACHOS ABERTOS - FACHO 1.ies
Observations
Built-in driver.
