WALL MINI
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM | 1 NARROW BEAM
WALL-MOUNTED EFFECT LIGHT | 1 WIDE BEAM | 1 NARROW BEAM
5W
Power110lm (100lm/10lm)
Luminous flux70° / 4°
Beam anglePATENTED PRODUCT
Wall-Mounted light with a striking light effect in a compact design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STH9731PTO/30 | Black | 3000K | 110lm (100lm/10lm) |
| STH9731BR/30 | White | 3000K | 110lm (100lm/10lm) |
3D
Click to move image
Graphics

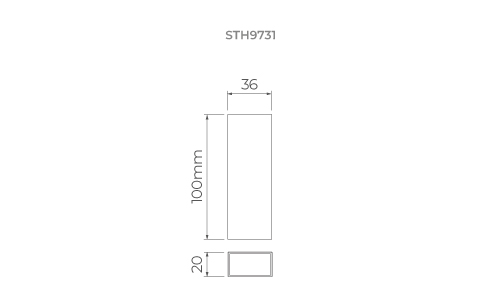

Technical drawing
Documents
STELLA - STH9731PTO-30 - WALL MINI - 1 FACHO ABERTO – 1 FACHO FECHADO.ies
STH9731BR_30_STH9731PTO_30.skp
STELLA - STH9731PTO-30 - PACK - SKP.zip
Manual_Wall_Micro_e_Mini_V7.pdf
STH9731BR_30_STH9731PTO_30.rfa
STELLA - STH9731BR-30 - WALL MINI - 1 FACHO ABERTO – 1 FACHO FECHADO.ies
STELLA - STH9731BR-30 - PACK - SKP.zip
STELLA - STH9731PTO-30-EU - PACK - SKP.zip
STELLA - STH9731BR-30-EU - PACK - SKP.zip
Observations
Built-in driver.
