WALL MINI
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
WALL-MOUNTED EFFECT LIGHT | 2 WIDE BEAMS
5W
Power200lm (100lm/100lm)
Luminous flux70° / 70°°
Beam anglePATENTED PRODUCT
Wall-Mounted light with a striking light effect in a compact design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STH9730PTO/30 | Black | 3000K | 200lm (100lm/100lm) |
| STH9730BR/30 | White | 3000K | 200lm (100lm/100lm) |
3D
Click to move image
Video
Photos
Graphics

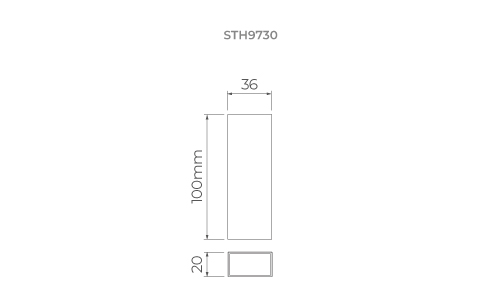

Technical drawing
Documents
STELLA - STH9730PTO-30 - WALL MINI - 2 FACHOS ABERTOS.ies
STH9730BR_30_STH9730PTO_30.skp
STELLA - STH9730PTO-30 - PACK - SKP.zip
Manual_Wall_Micro_e_Mini_V7.pdf
STH9730BR_30_STH9730PTO_30.rfa
STELLA - STH9730BR-30 - WALL MINI - 2 FACHOS ABERTOS.ies
STELLA - STH9730BR-30 - PACK - SKP.zip
STELLA - STH9730PTO-30-EU - PACK - SKP.zip
Manual_EUROPA_-_Inglês_-_WALL_MINI_EU_V1.pdf
STELLA - STH9730BR-30-EU - PACK - SKP.zip
Observations
Built-in driver.
