ICE LONG
WALL-MOUNTED LIGHT | 40CM
WALL-MOUNTED LIGHT | 40CM
6W
Power730lm
Luminous flux110°
Beam anglePATENTED PRODUCT
In addition to the square and rectangular models, Ice wall-mounted lights now offer new, longer and more delicate options: Ice Long. This series’ wall-mounted lights are distinguished by their clean design and perfect light distribution throughout the whole body, providing a comfortable and homogeneous lighting
| Luminous efficacy | 122lm/W and 132lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,5 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STL23774/30 | White | 100-240Vac | 3000K | 730lm |
| STL23774/40 | White | 100-240Vac | 4000K | 790lm |
3D
Click to move image
Graphics

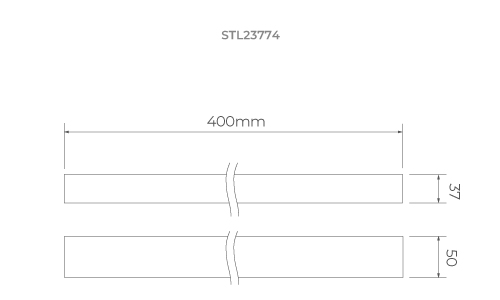

Technical drawing
Documents
Observations
Built-in driver
