Ice
Wall-Mounted Light | RECTANGULAR
Wall-Mounted Light | RECTANGULAR
5W
Power540lm
Luminous flux120°
Beam anglePATENTED PRODUCT
The Ice wall-mounted light delivers a perfect light distribution throughout its whole body, in a clean and elegant design, providing a comfortable and homogeneous lighting. Product with IP65 Protection Index.
| Luminous efficacy | 108lm/W to 116lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,5 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STL21701BR/30 | White | 3000K | 540lm |
| STL21701BR/40 | White | 4000K | 560lm |
| STL21701BR/50 | White | 5000K | 580lm |
3D
Click to move image
Photos
Graphics

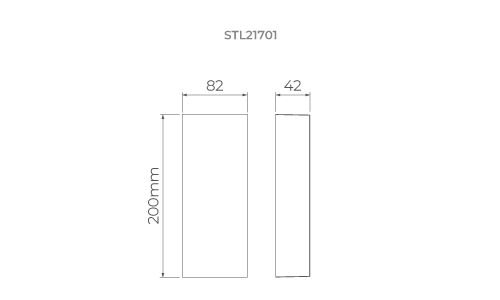

Technical drawing
Documents
STELLA - STL21701BR-30 - ICE ARANDELA DE LUZ GERAL RETANGULAR.ies
STL21701BR_30_40_50.skp
STELLA - STL21701BR-30 - PACK - SKP.zip
Manual_Arandelas_Ice_V4.pdf
STL21701BR_30_40_50.rfa
STELLA - STL21701BR-40 - ICE ARANDELA DE LUZ GERAL RETANGULAR.ies
STELLA - STL21701BR-40 - PACK - SKP.zip
STELLA - STL21701BR-50 - PACK - SKP.zip
Observations
Built-in driver.
STL21701BR/50 - Product available while stocks last.
