ARCHI
SURFACE MOUNTED PROFILE 24V
SURFACE MOUNTED PROFILE 24V
37W/m
Power/m520lm/m
Luminous flux/m90°
Beam angle
Like the recess mounted profiles, the surface mounted versions of the Archi line have a rectilinear design and homogeneous lighting. Available in options with flat or recessed diffusers, these products are installed with 24V LED strips with, on average, 120LEDs/m, and have a non-apparent fastening system.
| Total power | 37W |
| Voltage (Vcc) | 24Vcc |
| CRI (Color rendering index) | >93(R9 >60) |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH20973PTO/27 | Black | Black diffuser | 1m | 2700K | 520lm |
| STH20973PTO/30 | Black | Black diffuser | 1m | 3000K | 520lm |
Video
Not added.
Graphics

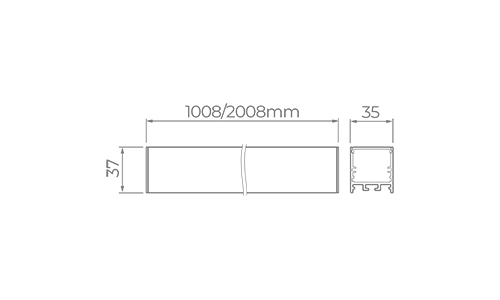

Technical drawing
Documents
Observations
End caps and fixation clips included.
STH20973PTO/27 - Product available while stocks last.
