Archi
Recess Mounted Profile 24V
Recess Mounted Profile 24V
18,5W/m
Power/m160lm/m
Luminous flux/m90°
Beam angle
The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.
| Total power | 18,5W and 37W |
| Voltage (Vcc) | 24Vcc |
| LED specifications | 120 LEDs SMD2835/m |
| CRI (Color rendering index) | >93(R9 >60) |
| UGR (Unified glare rating) | 19,3 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH21983PTO/27 | Black | Black diffuser | 1m | 2700K | 160lm |
| STH21984PTO/27 | Black | Black diffuser | 2m | 2700K | 320lm |

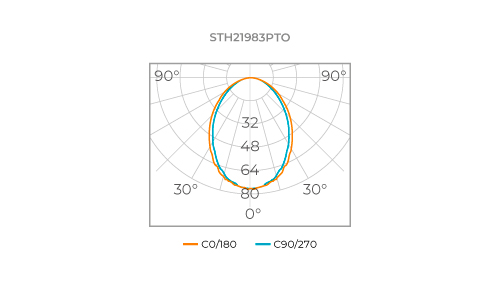

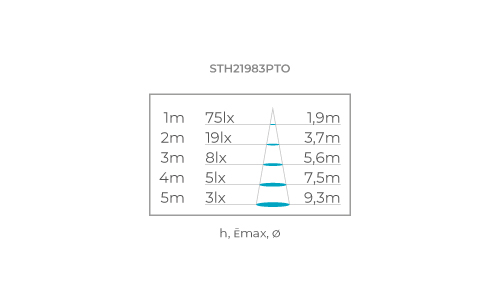

Graphics

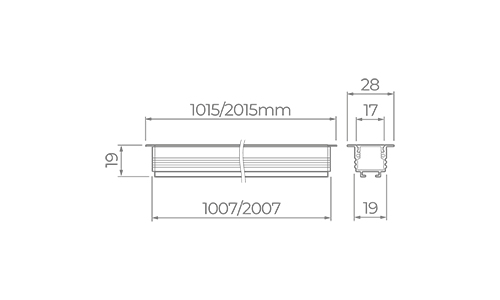

Technical drawing
Documents
STELLA - STH21983PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm.ies
STELLA - STH21983PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm_PACK.zip
STH21983PTO_27.skp
Manual Perfil Archi - Embutir V.4.3.pdf
STH21983PTO_27.rfa
STELLA - STH21984PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm.ies
STELLA - STH21984PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm_PACK.zip
STH21984PTO_27.skp
STH21984PTO_27.rfa
Observations
End caps and fixation clips included.
STH21983PTO/27 - Product available while stocks last.
