Surface Mounted Profile 24V
Surface Mounted Profile 24V
28W/m
Power/m960lm/m
Luminous flux/m110°
Beam angle
Like the recess mounted profiles, the surface mounted versions of the Archi line have a rectilinear design and homogeneous lighting. Available in options with flat or recessed diffusers, these products are installed with 24V LED strips with, on average, 120LEDs/m, and have a nonapparent fastening system.
| Total power | 28W |
| Voltage (Vcc) | 24Vcc |
| LED specifications | 2x 120 LEDs SMD2835/m |
| CRI (Color rendering index) | >93(R9 >60) |
| UGR (Unified glare rating) | 24,6 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH20971BR/27 | White | White diffuser | 1m | 2700K | 960lm |

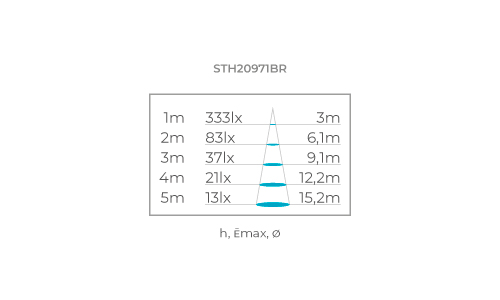

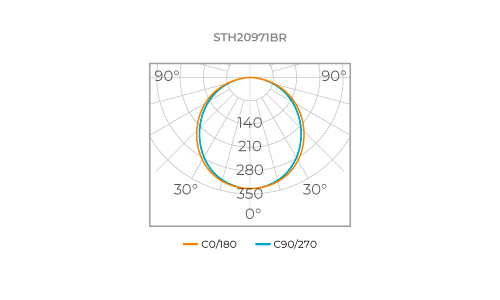

Graphics
Documents
Photos
Not added.
Observations
End caps and fixation clips included.
STH20971BR/27 - Product available while stocks last.
