Archi

Recess Mounted Profile 24V | 46mm | Recessed White Diffuser

28W/m

Power/m

750lm/m

Luminous flux/m

90°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

Total power	28W and 56W
Voltage (Vcc)	24Vcc
LED specifications	2x 120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	18,6
Lifespan	25000h
Prevailing material	Aluminum
Warranty	2 years

Compare

STH20991PTO/27	Black \| White diffuser	1m	2700K	750lm
STH20992PTO/27	Black \| White diffuser	2m	2700K	1500lm

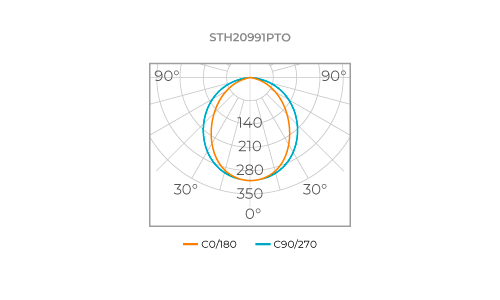

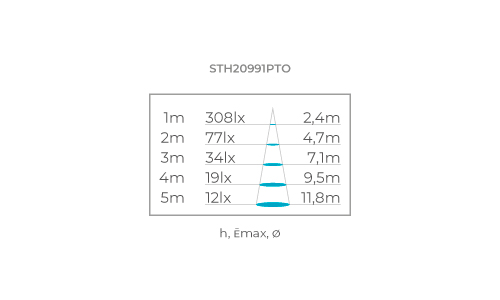

Graphics

Documents

STELLA - STH20991PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V .ies

STELLA - STH20991PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V _PACK.zip

STH20991PTO_27.skp

Manual Perfil Archi - Embutir V.4.3.pdf

STH20991BR_27_40_STH20991PTO_27.rfa

STELLA - STH20992PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V .ies

STELLA - STH20992PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V _PACK.zip

STH20992PTO_27.skp

STH20992BR_27_40_STH20992PTO_27.rfa

Photos

Not added.

Observations

End caps and fixation clips included.

STH20992PTO/27 - Product available while stocks last.
