Archi
Recess Mounted Profile 24V
Recess Mounted Profile 24V
14W/m
Power/m430lm/m
Luminous flux/m105°
Beam angle
The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.
| Total power | 14W and 28W |
| Voltage (Vcc) | 24Vcc |
| LED specifications | 120 LEDs SMD2835/m |
| CRI (Color rendering index) | >93(R9 >60) |
| UGR (Unified glare rating) | 23,8 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH21981PTO/27 | Black | White diffuser | 1m | 2700K | 430lm |
| STH21982PTO/27 | Black | White diffuser | 2m | 2700K | 860lm |

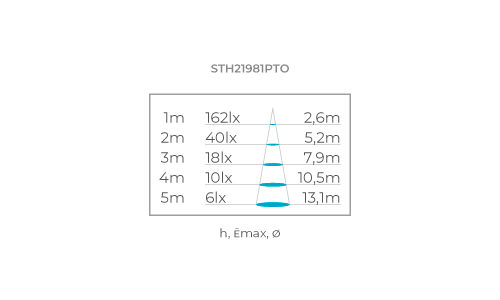

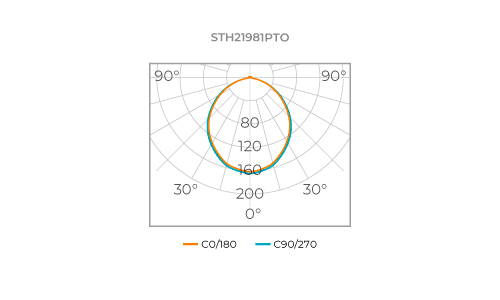

Graphics

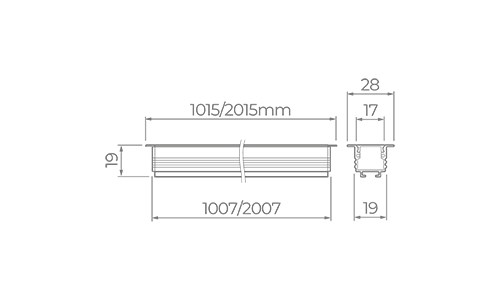

Technical drawing
Documents
STELLA - STH21981PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm.ies
STELLA - STH21981PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm_PACK.zip
STH21981PTO_27.skp
Manual Perfil Archi - Embutir V.4.3.pdf
STH21981BR_27_STH21981PTO_27.rfa
STELLA - STH21982PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm.ies
STELLA - STH21982PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 28mm_PACK.zip
STH21982PTO_27.skp
STH21982BR_27_STH21982PTO_27.rfa
Photos
Not added.
Observations
End caps and fixation clips included.
STH21981PTO/27, STH21982PTO/27 - Product available while stocks last.
