Archi

Recess Mounted Profile 24V | 16mm | Flat Black Diffuser

7W/m

Power/m

140lm/m

Luminous flux/m

80°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

Total power	7W and 14W
Voltage (Vcc)	24Vcc
LED specifications	224 LEDs SMD2216/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	19,7
Lifespan	25000h
Prevailing material	Aluminum
Warranty	2 years

Compare

STH21953PTO/27	Black \| Black diffuser	1m	2700K	140lm
STH21954PTO/27	Black \| Black diffuser	2m	2700K	280lm

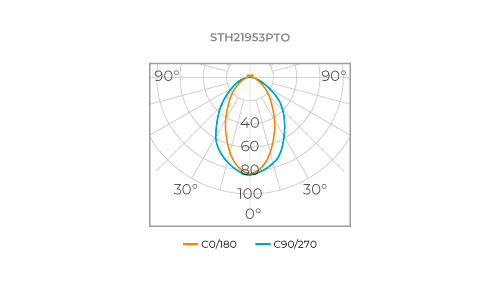

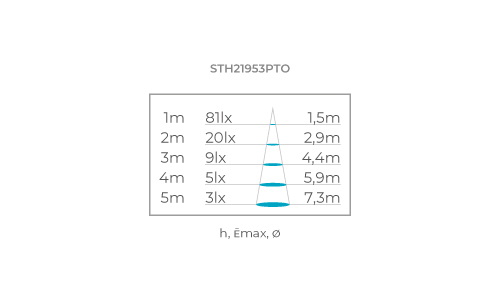

Graphics

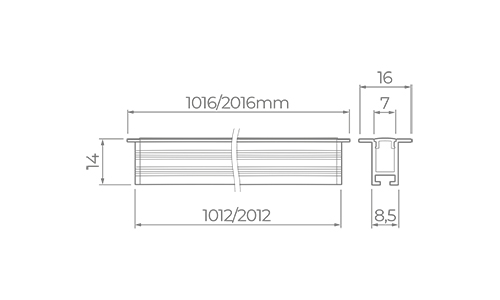

Technical drawing

Documents

STELLA - STH21953PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm.ies

STELLA - STH21953PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm_PACK.zip

STH21953PTO_27.skp

Manual Perfil Archi - Embutir V.4.3.pdf

STH21953PTO_27.rfa

STELLA - STH21954PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm.ies

STELLA - STH21954PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm_PACK.zip

STH21954PTO_27.skp

STH21954PTO_27.rfa

Observations

End caps and fixation clips included.

STH21953PTO/27, STH21954PTO/27 - Product available while stocks last.
