Archi

Surface Mounted Profile 24V | 25mm | Flat White Diffuser

11,5W/m

Power/m

570lm/m

Luminous flux/m

110°

Beam angle

Like the recess mounted profiles, the surface mounted versions of the Archi line have a rectilinear design and homogeneous lighting. Available in options with flat or recessed diffusers, these products are installed with 24V LED strips with, on average, 120LEDs/m, and have a non-apparent fastening system.

* PRODUCTS AVAILABLE WHILE STOCKS LAST.

Total power	11,5W and 23W
Voltage (Vcc)	24Vcc
LED specifications	120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	23,7
Lifespan (L70)	25000h
Prevailing material	Aluminum
Warranty	2 years
Operation temperature	-10 ~ 40°C

Compare

STH20961BR/27	White \| White diffuser	1m	2700K	570lm
STH20961BR/40	White \| White diffuser	1m	4000K	570lm
STH20962BR/40	White \| White diffuser	2m	4000K	1140lm

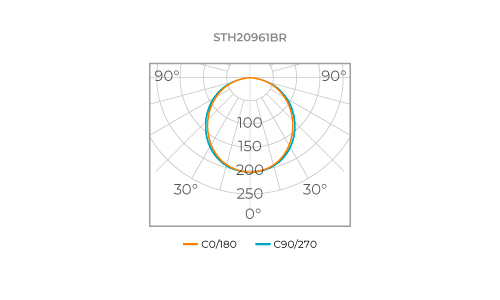

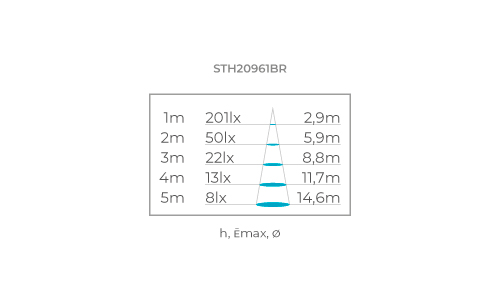

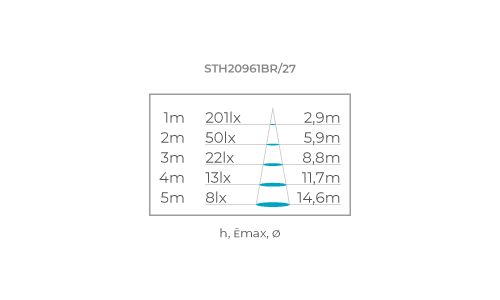

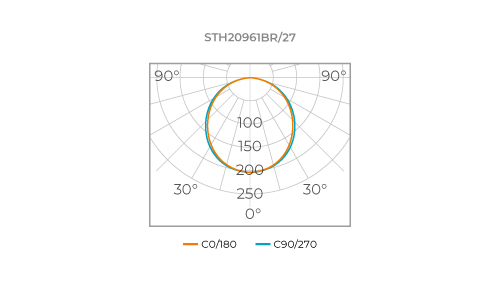

Graphics

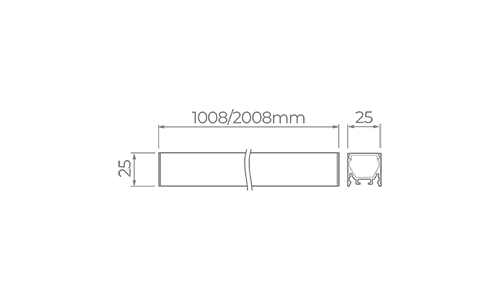

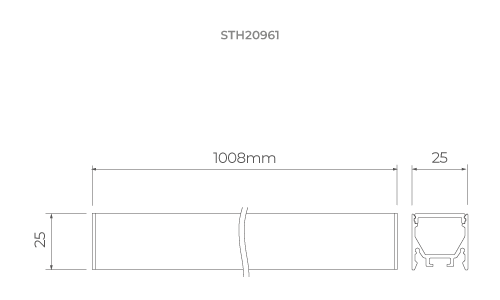

Technical drawing

Documents

STELLA - STH20961BR-27 - ARCHI - PERFIL DE SOBREPOR PLANO 24V.ies

STH20961BR_27_40.skp

STELLA - STH20961BR-27 - PACK - SKP.zip

Manual Perfil Archi - Sobrepor Versão 5.0.pdf

STH20961BR_27_40_STH20961PTO_27.rfa

STELLA - STH20961BR-40 - PERFIL DE SOBREPOR ARCHI 1m.ies

STELLA - STH20961BR-40 - PACK - SKP.zip

STH20962BR_27_40.skp

STELLA - STH20962BR-40 - PACK - SKP.zip

STH20962BR_27_40.rfa

Observations

End caps and fixation clips included.

STH20961BR/27, STH20961BR/40, STH20962BR/40 - Product available while stocks last.
