Archi

Recess Mounted Profile 24V | 24mm | Recessed Black Diffuser

18,5W/m

Power/m

150lm/m

Luminous flux/m

75°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

* PRODUCTS AVAILABLE WHILE STOCKS LAST.

Total power	18,5W and 37W
Voltage (Vcc)	24Vcc
LED specifications	120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	10,3
Lifespan (L70)	25000h
Prevailing material	Aluminum
Warranty	2 years
Operation temperature	-10 ~ 40°C

Compare

STH20983PTO/27	Black \| Black diffuser	1m	2700K	150lm
STH20984PTO/27	Black \| Black diffuser	2m	2700K	300lm

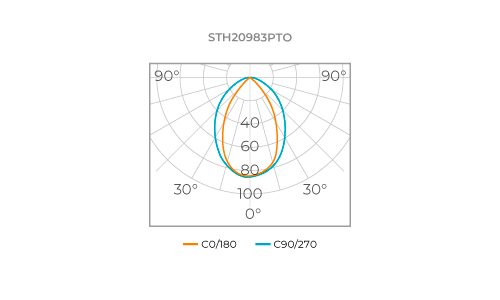

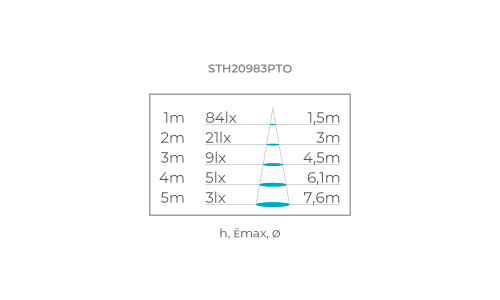

Graphics

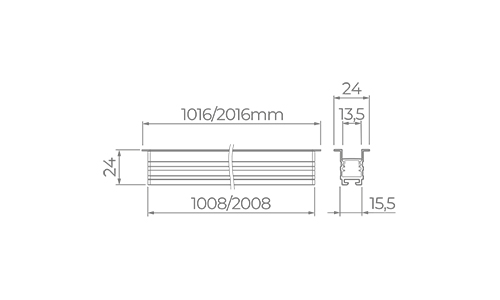

Technical drawing

Documents

STELLA - STH20983PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V .ies

STH20983PTO_27.skp

STELLA - STH20983PTO-27 - PACK - SKP.zip

Manual Perfil Archi - Embutir V.4.3.pdf

STH20983PTO_27.rfa

STELLA - STH20984PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V .ies

STH20984PTO_27.skp

STELLA - STH20984PTO-27 - PACK - SKP.zip

STH20984PTO_27.rfa

Observations

End caps and fixation clips included.

STH20983PTO/27, STH20984PTO/27 - Product available while stocks last.
