Archi

Recess Mounted Profile 24V | 46mm | Recessed Black Diffuser

37W/m

Power/m

360lm/m

Luminous flux/m

80°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

Total power	37W and 74W
Voltage (Vcc)	24Vcc
LED specifications	2x 120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	15,7
Lifespan	25000h
Prevailing material	Aluminum
Warranty	2 years

Compare

STH20993PTO/27	Black \| Black diffuser	1m	2700K	360lm
STH20994PTO/27	Black \| Black diffuser	2m	2700K	720lm

Graphics

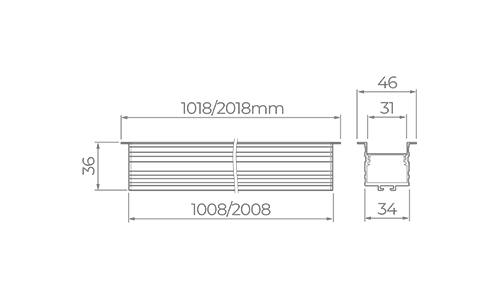

Technical drawing

Documents

STELLA - STH20993PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V.ies

STELLA - STH20993PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V_PACK.zip

STH20993PTO_27.skp

Manual Perfil Archi - Embutir V.4.3.pdf

STH20993PTO_27.rfa

STELLA - STH20994PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V.ies

STELLA - STH20994PTO-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V_PACK.zip

STH20994PTO_27.skp

STH20994PTO_27.rfa

Observations

End caps and fixation clips included.

STH20993PTO/27, STH20994PTO/27 - Product available while stocks last.
