Archi

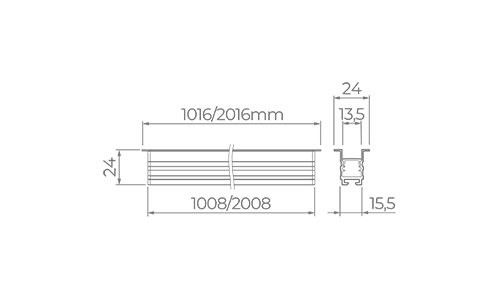

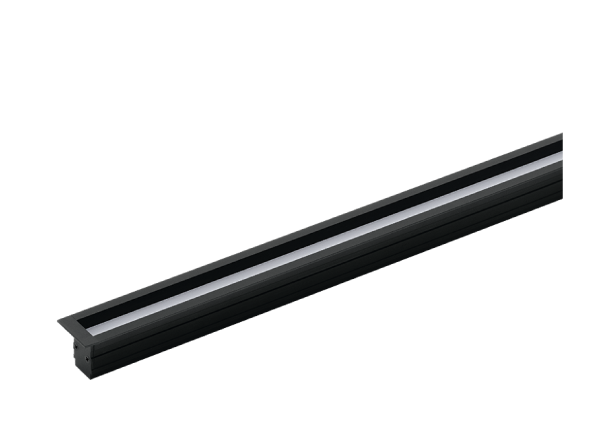

Recess Mounted Profile 24V | 24mm | Recessed White Diffuser

11,5W/m

Power/m

470lm/m

Luminous flux/m

90°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

* PRODUCTS AVAILABLE WHILE STOCKS LAST.

Total power	11,5W and 23W
Voltage (Vcc)	24Vcc
LED specifications	120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	21,4
Lifespan (L70)	25000h
Prevailing material	Aluminum
Warranty	2 years
Operation temperature	-10 ~ 40°C

Compare

STH20981BR/27	White \| White diffuser	1m	2700K	470lm
STH20982BR/27	White \| White diffuser	2m	2700K	940lm

Photos

Graphics

Documents

STELLA - STH20981BR-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V.ies

STH20981BR_27_40.skp

STELLA - STH20981BR-27 - PACK - SKP.zip

Manual Perfil Archi - Embutir V.4.3.pdf

STH20981BR_27_40_STH20981PTO_27.rfa

STELLA - STH20982BR-27 - ARCHI - PERFIL DE EMBUTIR RECUADO 24V.ies

STH20982BR_27.skp

STELLA - STH20982BR-27 - PACK - SKP.zip

STH20982BR_27_40_STH20982PTO_27.rfa

Observations

End caps and fixation clips included.

STH20981BR/27, STH20982BR/27 - Product available while stocks last.

Indicated accessories:

Linear Splice Kit (STH20976, sold separately)
L Shaped Splice Kit (STH20977, sold separately)
Ceiling-Wall L Shaped Splice Kit (STH20978, sold separately)

To be used only with Stella's 24Vcc drivers.
