Archi

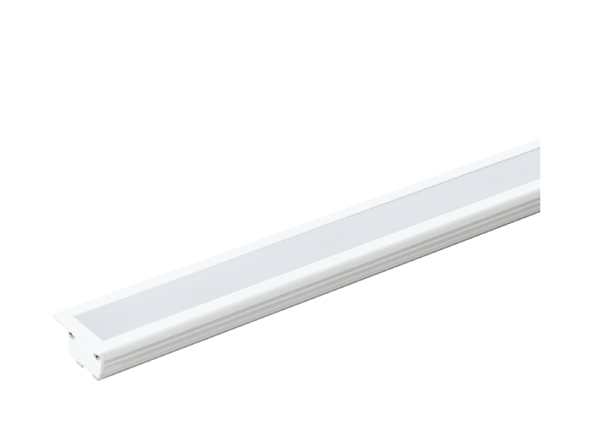

Recess Mounted Profile 24V | 16mm | Flat White Diffuser

5W/m

Power/m

110lm/m

Luminous flux/m

110°

Beam angle

The Archi line has a wide variety of recessed profiles, with flat and recessed diffuser options for the most demanding architectural projects. Its rectilinear design and super-thin edges provide a contemporary touch to any lighting project.

Total power	5W and 10W
Voltage (Vcc)	24Vcc
LED specifications	224 LEDs SMD2216/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	22,4
Lifespan	25000h
Prevailing material	Aluminum
Warranty	2 years

Compare

STH21951PTO/27	Black \| White diffuser	1m	2700K	110lm
STH21952PTO/27	Black \| White diffuser	2m	2700K	220lm

Photos

Graphics

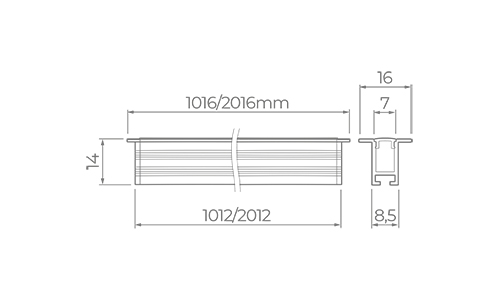

Technical drawing

Documents

STELLA - STH21951PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm.ies

STELLA - STH21951PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm_PACK.zip

STH21951PTO_27.skp

Manual Perfil Archi - Embutir V.4.3.pdf

STH21951BR_27_STH21951PTO_27.rfa

STELLA - STH21952PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm.ies

STELLA - STH21952PTO-27 - ARCHI - PERFIL DE EMBUTIR PLANO 16mm_PACK.zip

STH21952PTO_27.skp

STH21952BR_27_STH21952PTO_27.rfa

Observations

End caps and fixation clips included.

STH21951PTO/27, STH21952PTO/27 - Product available while stocks last.
