Stella - ALL LIGHT 12V EVO LED STRIP

ALL LIGHT 12V EVO LED STRIP

CRI 90 | IP67

10W/m

Power/m

650lm/m

Luminous flux/m

EVO, PRO and ULTRA: Stella's new LED Strips line. We present three entirely redesigned series, complete with novel features that are applicable to a variety of projects. All Light EVO LED Strips offer up to 288 LEDs/m, COB technology, high adhesion of 8N/cm² and CRI 90.

Total power	50W
Luminous flux total	3250lm
LED specifications	288 LEDs COB/m
CRI (Color rendering index)	>90(R9 >40)
Adhesion	8N/cm²
Cutting distance	2,08cm
Roll lenght	5m
Operation temperature	-10 ~ 40°C
Lifespan (L70)	25000h
Warranty	2 years

Compare

STL25829/30

12Vcc

IP67

3000K

Warm white

650lm/m

Graphics

ALL LIGHT 12V EVO LED STRIP

ALL LIGHT 12V EVO LED STRIP

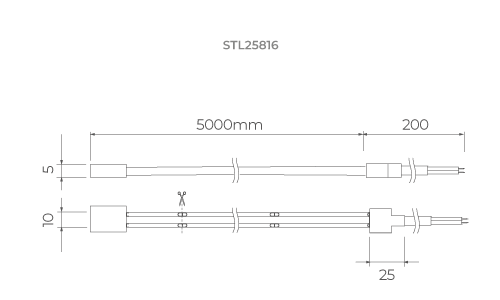

Technical drawing

ALL LIGHT 12V EVO LED STRIP

Documents

Manual_Fitas_All_Light_12V_EVO_3000K_IP67_V1.pdf

Observations

- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

- The product must only be installed on clean and dry surfaces.

- Allows cutting every 2,08cm.

- - Curves in a radius smaller than 12,5mm are not allowed

- It is essential that electrical installations be carried out by qualified professionals

- Use the LED Strip completely unrolled

- To be used with Stella 12V LED Drivers only
