Fita 12V Evo

12V EVO LED Strip

6W/m

Power/m

550lm/m

Luminous flux/m

One line has it all. Stella's LED Strips line offers several power and color temperature options, making these LED Strips appropriate to all kinds of lighting projects. Stella's LED Strips are key to providing dynamic solutions to a variety of spaces.

Total power	30W
Luminous flux total	2750lm
LED specifications	60 LEDs SMD2835/m
CRI (Color rendering index)	>80
Lifespan	25000h
Roll lenght	5m
Warranty	2 years

Compare

STH6800/27	12V	12Vcc	IP20	2700K	Warm white	550lm/m
STH8800/30	12V	12Vcc	IP20	3000K	Warm white	550lm/m
STH6800/40	12V	12Vcc	IP20	4000K	Neutral white	550lm/m

Graphics

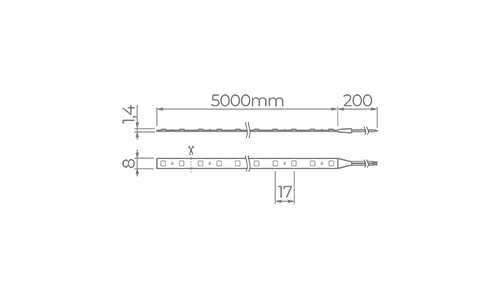

Technical drawing

Documents

STELLA - STH6800-27 - FITA EVO 12V 6W-m.ies

Manual Fita 12V EVO_V.5_(STH6800 STH6805 STH6810 STH6815 STH7800 STH8800 STH8810 STH20800 STH20805 STH20810 STH20815).pdf

STELLA - STH8800-30 - FITA EVO 12V 6W-m.ies

STELLA - STH6800-40 - FITA EVO 12V 6W-m.ies

Photos

Not added.

Observations

- To be used only with Stella's Drivers and accessories. The product's warranty does not apply if it is used with other Drivers and/or accessories.
- Dimming is possible when using a dimmable Stella LED Driver
- The product must only be installed on clean and dry surfaces.
- It is essential that electrical installations be carried out by qualified professionals
- Use the LED Strip completely unrolled and can only be cut at every 5cm (according to the markers on the strip)
- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

STH7800/27, STH6800/30 - Products available while stocks last.
