Fita 12V Eco

12V ECO LED Strip

5W/m

Power/m

500lm/m

Luminous flux/m

With a 12V voltage, Stella's ECO LED Strips provide soft lighting and IP67 options, ideal to be used in external spaces.

Total power	25W
Luminous flux total	2400lm to 2750lm
LED specifications	60 LEDs SMD2835/m
CRI (Color rendering index)	>80
Lifespan	15000h
Roll lenght	5m
Warranty	2 years

Compare

STH7804/27	12V	12Vcc	IP20	2700K	Warm white	480lm/m
STH7804/40	12V	12Vcc	IP20	4000K	Neutral white	550lm/m
STH7804/65	12V	12Vcc	IP20	6500K	Cool-white	550lm/m
STH7804/30	12V	12Vcc	IP20	3000K	Warm white	500lm/m

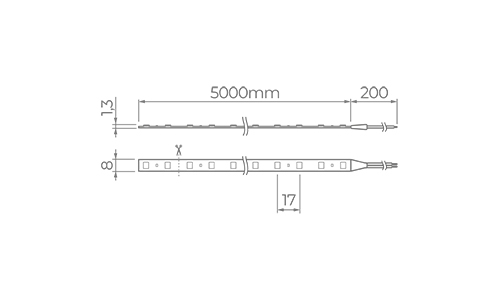

Technical drawing

Documents

STELLA - STH7804-27 - FITA ECO 12V 5W-m 1.ies

Manual STH7804_STH7814_MANUAL_V51 (1).pdf

STELLA - STH7804-40 - Fita ECO 12V 5W-m.ies

STELLA - STH7804-65 - Fita ECO 12V 5W-m.ies

STELLA - STH7804-30 - FITA ECO 12V 5W-m.ies

Photos

Not added.

Observations

- To be used only with Stella's Drivers and accessories. The product's warranty does not apply if it is used with other Drivers and/or accessories.
- Dimming is possible when using a dimmable Stella LED Driver
- The product must only be installed on clean and dry surfaces.
- It is essential that electrical installations be carried out by qualified professionals
- Use the LED Strip completely unrolled and can only be cut at every 5cm (according to the markers on the strip)
- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

Products available while stocks last.
