Fita 12V Eco

12V ECO LED Strip

10W/m

Power/m

850lm/m

Luminous flux/m

One line has it all. Stella's LED Strips line offers several power and color temperature options, making these LED Strips appropriate to all kinds of lighting projects. Stella's LED Strips are key to providing dynamic solutions to a variety of spaces.

Total power	50W
Luminous flux total	4250lm and 4500lm
LED specifications	60 LEDs SMD5050/m
CRI (Color rendering index)	>80
Lifespan	15000h
Roll lenght	5m
Warranty	2 anos

Compare

STH7814/27	12V	12Vcc	IP20	2700K	Warm white	850lm/m
STH7814/40	12V	12Vcc	IP20	4000K	Neutral white	900lm/m
STH7814/65	12V	12Vcc	IP20	6500K	Cool-white	900lm/m
STH7814/30	12V	12Vcc	IP20	3000K	Warm white	850lm/m

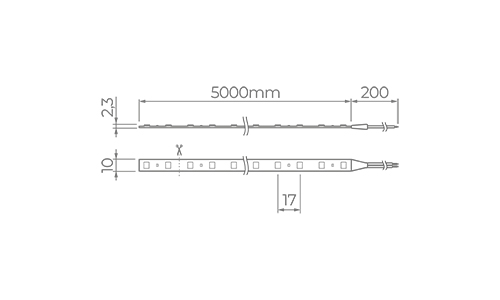

Technical drawing

Documents

STELLA - STH7814-27 - FITA 12V ECO 10W-m.ies

Manual STH7804_STH7814_MANUAL_V51 (1).pdf

STELLA - STH7814-40 - FITA 12V ECO 10W-m.ies

STELLA - STH7814-65 - FITA 12V ECO 10W-m.ies

STELLA - STH7814-30 - FITA ECO 10W-m.ies

Photos

Not added.

Observations

- To be used only with Stella's Drivers and accessories. The product's warranty does not apply if it is used with other Drivers and/or accessories.
- Dimming is possible when using a dimmable Stella LED Driver
- The product must only be installed on clean and dry surfaces.
- It is essential that electrical installations be carried out by qualified professionals
- Use the LED Strip completely unrolled. It can only be cut at every 5cm (according to the markers on the strip)
- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

Products available while stocks last.
