Fita 12V Evo

12V EVO LED Strip

12W/m

Power/m

1100lm/m

Luminous flux/m

One line has it all. Stella's LED Strips line offers several power and color temperature options, making these LED Strips appropriate to all kinds of lighting projects. Stella's LED Strips are key to providing dynamic solutions to a variety of spaces.

Total power	60W
Luminous flux total	5500lm
LED specifications	60 LEDs SMD5050/m
CRI (Color rendering index)	>80
Lifespan	25000h
Roll lenght	5m
Warranty	2 years

Compare

STH6810/27	12V	12Vcc	IP20	2700K	Warm white	1100lm/m
STH8810/30	12V	12Vcc	IP20	3000K	Warm white	1100lm/m
STH6810/40	12V	12Vcc	IP20	4000K	Neutral white	1100lm/m

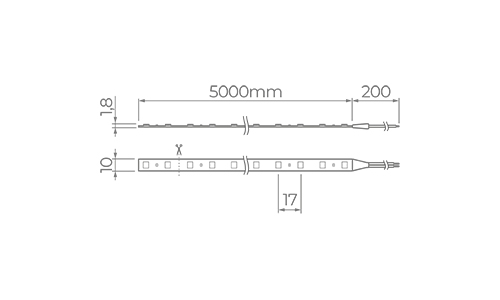

Technical drawing

Documents

STELLA - STH6810-27 - FITA EVO 12V 12W-m.ies

Manual Fita 12V EVO_V.5_(STH6800 STH6805 STH6810 STH6815 STH7800 STH8800 STH8810 STH20800 STH20805 STH20810 STH20815).pdf

STELLA - STH8810-30 - FITA EVO 12V 12W-m.ies

STELLA - STH6810-40 - FITA EVO 12V 12W-m.ies

Photos

Not added.

Observations

- To be used only with Stella's Drivers and accessories. The product's warranty does not apply if it is used with other Drivers and/or accessories.
- Dimming is possible when using a dimmable Stella LED Driver
- The product must only be installed on clean and dry surfaces.
- It is essential that electrical installations be carried out by qualified professionals
- Use the LED Strip completely unrolled. It can only be cut at every 5cm (according to the markers on the strip)
- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

Products available while stocks last.
