ALL LIGHT 12V EVO LED STRIP

CRI 90

7W/m

Power/m

500lm/m

Luminous flux/m

EVO, PRO and ULTRA: Stella's new LED Strips line. We present three entirely redesigned series, complete with novel features that are applicable to a variety of projects. All Light EVO LED Strips offer up to 288 LEDs/m, COB technology, high adhesion of 8N/cm² and CRI 90.

Total power	35W
Luminous flux total	2500lm
LED specifications	288 LEDs COB/m
CRI (Color rendering index)	>90(R9 >40)
Adhesion	8N/cm²
Lifespan	25000h
Roll lenght	5m
Warranty	2 years

Compare

STL24804/27	12V	12Vcc	IP20	2700K	Warm white	500lm/m
STL24804/30	12V	12Vcc	IP20	3000K	Warm white	500lm/m
STL24804/40	12V	12Vcc	IP20	4000K	Neutral white	500lm/m

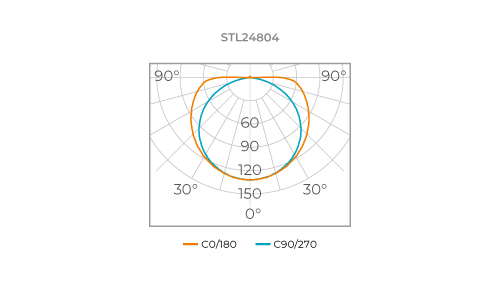

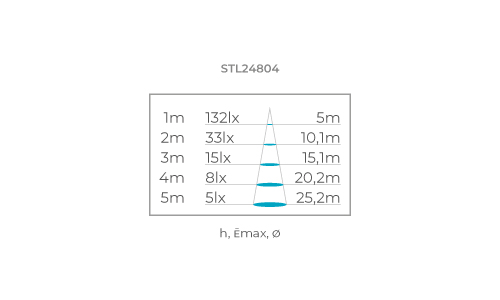

Graphics

ALL LIGHT 12V EVO LED STRIP

ALL LIGHT 12V EVO LED STRIP

Documents

STELLA - STL24804-27 - Fita All Light EVO IP20 12V 7W.ies

MANUAL_FITA_ALL_LIGHT_12V_EVO_STL24804_STL24814_STL24824_V1.pdf

STELLA - STL24804-30 - Fita All Light EVO IP20 12V 7W.ies

STELLA - STL24804-40 - Fita All Light EVO IP20 12V 7W.ies

Photos

Not added.

Observations

- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

- The product must only be installed on clean and dry surfaces.

- Allows cutting every 2,08cm.

- It is essential that electrical installations be carried out by qualified professionals

- Use the LED Strip completely unrolled

- To be used with Stella 12V LED Drivers only
