Stella - ALL LIGHT 12V EVO LED STRIP

ALL LIGHT 12V EVO LED STRIP

CRI90 | IP65

10W/m

Power/m

700lm/m

Luminous flux/m

EVO, PRO and ULTRA: Stella's new LED Strips line. We present three entirely redesigned series, complete with novel features that are applicable to a variety of projects. All Light EVO LED Strips offer up to 288 LEDs/m, COB technology, high adhesion of 8N/cm² and CRI 90.

Lifespan (L70)	25000h
Warranty	2 years
Total power	50W
Operation temperature	-10 ~ 40°C
Roll lenght	5m
Cutting distance	2,08cm
Adhesion	8N/cm²
CRI (Color rendering index)	>90(R9 >40)
LED specifications	288 LEDs COB/m
Luminous flux total	3500lm

Compare

STL24815/27	12Vcc	IP65	2700K	Warm white	700lm/m
STL25815/30	12Vcc	IP65	3000K	Warm white	700lm/m

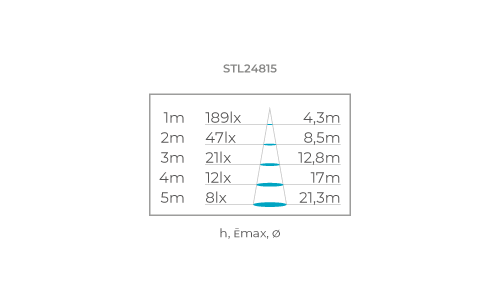

Graphics

ALL LIGHT 12V EVO LED STRIP

ALL LIGHT 12V EVO LED STRIP

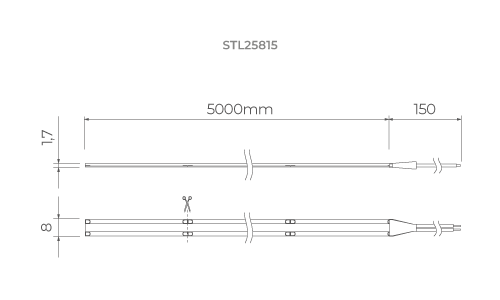

Technical drawing

ALL LIGHT 12V EVO LED STRIP

Documents

STELLA - STL24815-27 Fita All Light EVO IP65 12V 10W.ies

STL24815_27.skp

STELLA - STL24815-27 - PACK - SKP.zip

Manual_Fitas_EVO_IP65_V2.pdf

STELLA - STL25815-30 - PACK - SKP.zip

Observations

- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

- The product must only be installed on clean and dry surfaces.

- Allows cutting every 2,08cm.

- Curves in a radius smaller than 12,5mm are not allowed

- It is essential that electrical installations be carried out by qualified professionals

- Use the LED Strip completely unrolled

- To be used with Stella 12V LED Drivers only
