WALL MICRO
WALL-MOUNTED PATH-LIGHT | 1 WIDE BEAM
WALL-MOUNTED PATH-LIGHT | 1 WIDE BEAM
2,5W
Power100lm
Luminous flux70°
Beam angle
The Wall Micro path-light has a clear and accurate light beam, within an extremely compact body that fits in your hand. These products have an integrated light source and a fixation system that facilitates installation and eliminates apparent screws.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,8 |
| Operation temperature | -10 ~ 40°C |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH21728PTO/30 | Black | 100-240Vac | 3000K | 100lm |
| STH21728BR/30 | White | 100-240Vac | 3000K | 100lm |
3D
Click to move image
Video
Photos
Graphics

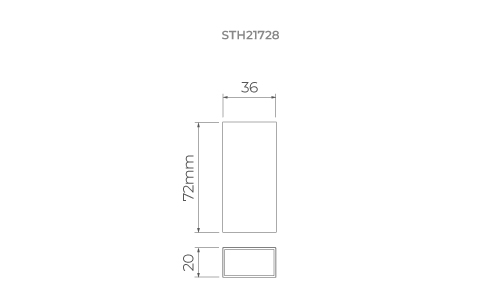

Technical drawing
Documents
STELLA - STH21728PTO-30 - WALL MICRO FACHO ABERTO.ies
STH21728BR_30_STH21728PTO_30.skp
STELLA - STH21728PTO-30 - PACK - SKP.zip
Manual_Wall_Micro_e_Wall_Mini_V8.pdf
STH21728BR_30_STH21728PTO_30.rfa
STELLA - STH21728BR-30 - WALL MICRO FACHO ABERTO.ies
STELLA - STH21728BR-30 - PACK - SKP.zip
STELLA - STH21728BR-30-EU - BALIZADOR DE SOBREPOR 1 FACHO ABERTO WALL MICRO.ies
STELLA - STH21728BR-30-EU - PACK - SKP.zip
Manual_EUROPA_-_Inglês_-_WALL_MICRO_EU_V1.pdf
STELLA - STH21728PTO-30-EU - BALIZADOR DE SOBREPOR 1 FACHO ABERTO WALL MICRO.ies
STELLA - STH21728PTO-30-EU - PACK - SKP.zip
Observations
Built-in driver.
