WAY UP RECESSED
INGROUND PATH-LIGHT WITH ANTI-GLARE GRID
INGROUND PATH-LIGHT WITH ANTI-GLARE GRID
1W
Power45lm
Luminous flux24°
Beam anglePATENTED PRODUCT
A line thought and developed by Stella from start to end, Way redefines the concept of inground path-lights. Recess, grid and horizontal effects are developed to maximize visual comfort and offer several ways of lighting. These products have a robust and compact weatherproof body. This series has an exclusive Block Connector and a unique installation casing, developed especially for the Way line. Way Up Recessed has an upper body in aluminum, with finishing options in anodized natural and anodized black. With a recessed light source and anti-glare grid, Way Up Recessed has a narrow and continuous light beam.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP67 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STL21712PTO/30 | Black | 100-240Vac | 3000K | 45lm |
3D
Click to move image
Graphics

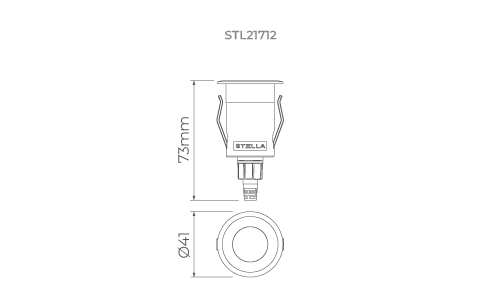

Technical drawing
Documents
Photos
Not added.
Observations
Indicated accessory: Installation Casing for Way Ingrounds - STL21799, sold separately.
Built-in driver.
