WAY SIDE 24V
INGROUND PATH-LIGHT | 1 BEAM
INGROUND PATH-LIGHT | 1 BEAM
1,5W
Power2lm
Luminous flux80°
Beam anglePATENTED PRODUCT
A line thought and developed by Stella from start to end, Way redefines the concept of inground path-lights. Recess, grid and horizontal effects are developed to maximize visual comfort and offer several ways of lighting. These products have a robust and compact weatherproof body. This series has an exclusive Block Connector and a unique installation casing, developed especially for the Way line. Way Side has an 80° horizontal light and near to zero glare effects.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP67 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL22713/30 | Black | 24Vcc | 3000K | 2lm |
Graphics

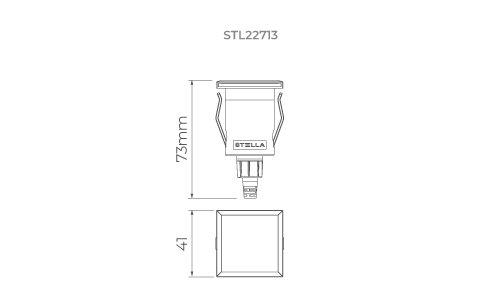

Technical drawing
Documents
Photos
Not added.
Observations
Indicated accessory: Installation Casing for Way Ingrounds - STL21799, sold separately.
To be used only with Stella’s 24V Drivers.
