Big Neu 2
Wall-Mounted Path-light
Wall-Mounted Path-light
3W
Power120lm
Luminous flux80°
Beam anglePATENTED PRODUCT
Compact, elegant and extremely thin. The Neu 2 family delivers a new concept of all-mounted path lights, combining the aesthetics of built-in products to the racticality of surface-mounted path-lights, creating a unique and original design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH8756/30 | Black | 100-240Vac | 3000K | 75lm |
| STH8755/30 | White | 100-240Vac | 3000K | 120lm |
3D
Click to move image
Graphics

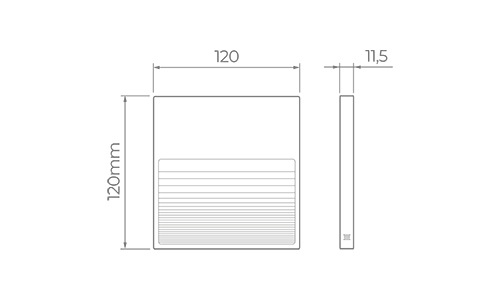

Technical drawing
Documents
Observations
Indicated accessory: Mini Junction Box - STH7799, sold separately.
Built-in driver.
