Wall Micro
WALL-MOUNTED PATH-LIGHT | 1 NARROW BEAM
WALL-MOUNTED PATH-LIGHT | 1 NARROW BEAM
2,5W
Power10lm
Luminous flux4°
Beam anglePATENTED PRODUCT
The Wall Micro path-light has a clear and accurate light beam, within an extremely compact body that fits in your hand. These products have an integrated light source and a fixation system that facilitates installation and eliminates apparent screws.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,8 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STH21729PTO/30 | Black | 100-240Vac | 3000K | 10lm |
| STH21729BR/30 | White | 100-240Vac | 3000K | 10lm |
Video

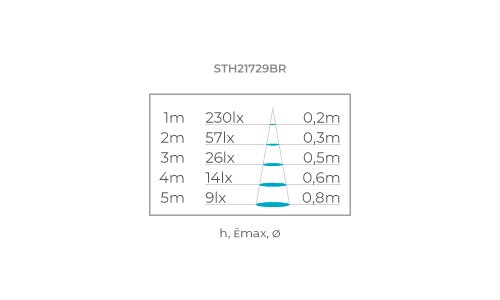

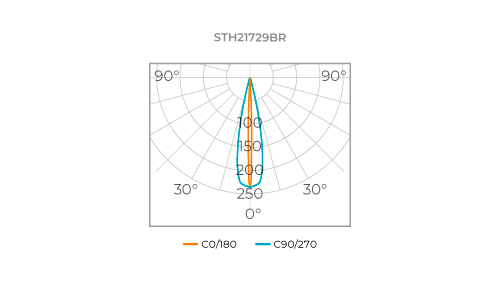

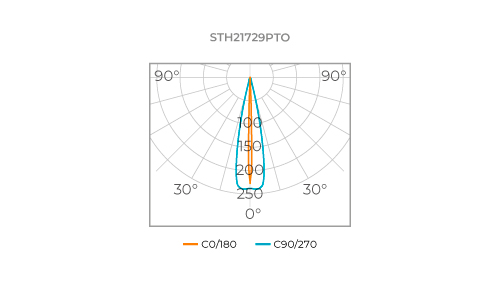

Graphics

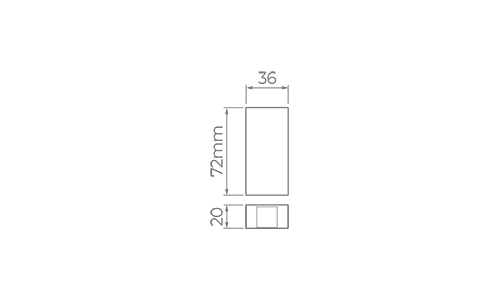

Technical drawing
Documents
Observations
Indicated accessory: Mini Junction Box - STH7799, sold separately.
Built-in driver.
