PLANE

SURFACE MOUNTED LINEAR FIXTURE

32W

Power

3800lm

Luminous flux

140°

Beam angle

With its standout clean design, Plane offers an optimal performance for ambient lighting, featuring a greater illuminated surface for all its models. Available for surface mounting, Stella’s new series offers the convenience of a quick fixing connection system and is compatible with its own Suspension Kit.

Luminous efficacy	119lm/W to 128lm/W
CRI (Color rendering index)	>80(R9 >)
Power factor	>0,92
Lifespan (L70)	25000h
Prevailing material	Polycarbonate
Warranty	2 years
Operation temperature	-10 ~ 40°C

Compare

STL23941/30	White	100-240Vac	3000K	3800lm
STL23941/40	White	100-240Vac	4000K	4000lm
STL23941/50	White	100-240Vac	5000K	4100lm

3D

Click to move image

Photos

Graphics

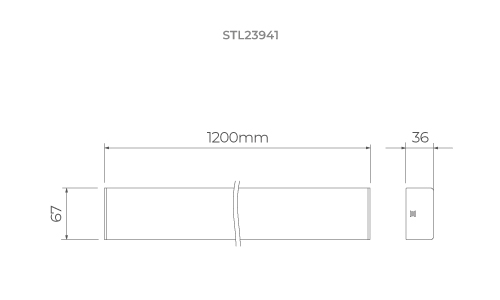

Technical drawing

Documents

STELLA - STL23941-30 - LUMINARIA DE SOBREPOR PLANE 120CM.ies

STL23941_30_40_50.skp

STELLA - STL23941-30 - PACK - SKP.zip

Manual_Luminária_Plane_V4.pdf

STL23941_30_40_50.rfa

STELLA - STL23941-40 - LUMINARIA DE SOBREPOR PLANE 120 CM.ies

STELLA - STL23941-40 - PACK - SKP.zip

STELLA - STL23941-50 - LUMINARIA DE SOBREPOR PLANE 120 CM.ies

STELLA - STL23941-50 - PACK - SKP.zip

STELLA - STL23941-30-EU - LUMINÁRIA LINEAR DE SOBREPOR PLANE 32W.ies

STELLA - STL23941-30-EU - PACK - SKP.zip

Manual_EUROPA_-_Inglês_-_Plane_V1.pdf

STELLA - STL23941-40-EU - LUMINÁRIA LINEAR DE SOBREPOR PLANE 32W.ies

STELLA - STL23941-40-EU - PACK - SKP.zip

Observations

Fixation clips included.
Built-in driver.

* Luminous flux and efficiency data refers to lighting fixtures sold from batch L.151025 (for reference STL23941/40). Up to batch L.140825 (for reference STL23941/40), the following data should be considered:

Luminous Flux STL23941/40: 3800lm

Luminous Efficiency STL23941/40: 119lm/W
