SURFACE MOUNTED PANEL ECO
12W
Power1100lm
Luminous flux120°
Beam angle
Recessed and Surface Mounted Panels ECO are ideal for ambient lighting. With driver included, this product is a functional and versatile option for any number of projects.
| Luminous efficacy | 92lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH21962Q/30 | White | 100-240Vac | 100-240V | 3000K | 1100lm |
| STH21962Q/40 | White | 100-240Vac | 100-240V | 4000K | 1100lm |
| STH21962Q/65 | White | 100-240Vac | 100-240V | 6500K | 1100lm |

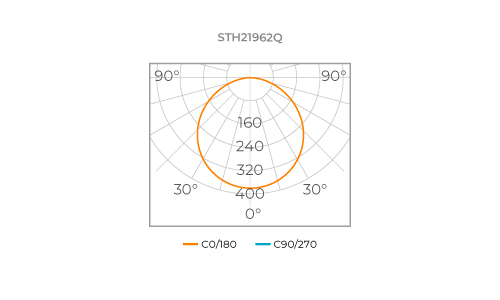

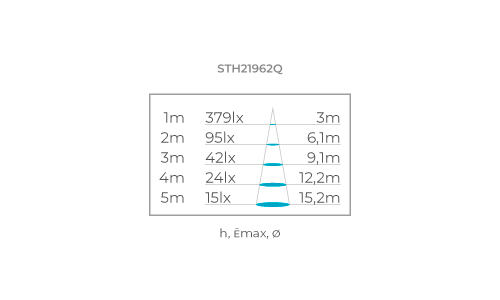

Graphics

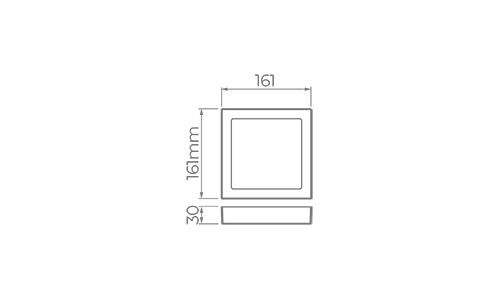

Technical drawing
Documents
STELLA - STH21962Q-30 - PLAFON DE SOBREPOR ECO 12W.ies
STELLA - STH21962Q-30-40-65 - PLAFON DE SOBREPOR ECO 12W_PACK.zip
STH21962Q_30_40_65.skp
MANUAL_PLAFON_SOBREPOR_ECO_STH21962Q_STH21963Q_STH21964Q_V3.pdf
STH21962Q_30_40_65.rfa
STELLA - STH21962Q-40 - PLAFON DE SOBREPOR ECO 12W.ies
STELLA - STH21962Q-65 - PLAFON DE SOBREPOR ECO 12W.ies
Observations
Driver Included.
STH21962Q/30, STH21962Q/40, STH21962Q/65 - Product available while stocks last.
