Edge
Recessed Panel
Recessed Panel
26W
Power3000lm
Luminous flux110°
Beam anglePATENTED PRODUCT
The Edge panels are distinguished by their ultra-thin borders, which further improve the product’s high luminous efficacy and the uniform effect provided by backlighting.
| Luminous efficacy | 115lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL22954BR/30 | White | 100-240Vac | 3000K | 3000lm | 100-240V |
| STL22954BR/40 | White | 100-240Vac | 4000K | 3000lm | 100-240V |
| STL22954BR/50 | White | 100-240Vac | 5000K | 3000lm | 100-240V |

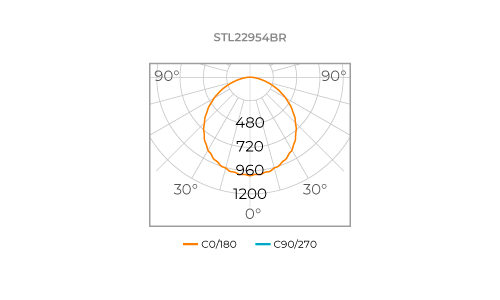

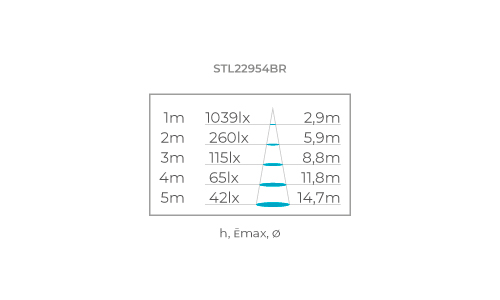

Graphics

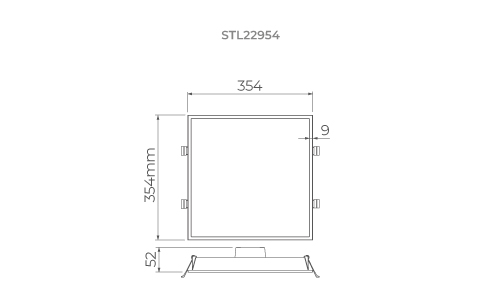

Technical drawing
Documents
Observations
Fixation clips included.
Built-in driver.
STL22954BR/30, STL22954BR/40, STL22954BR/50 - Product available while stocks last.
