EDGE
Recessed Panel
Recessed Panel
20W
Power2200lm
Luminous flux110°
Beam anglePATENTED PRODUCT
The Edge panels are distinguished by their ultra-thin borders, which further improve the product’s high luminous efficacy and the uniform effect provided by backlighting.
| Luminous efficacy | 110lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL22953PTO/30 | Black | 100-240Vac | 3000K | 2200lm | 100-240V |
| STL22953PTO/40 | Black | 100-240Vac | 4000K | 2200lm | 100-240V |
| STL22953BR/30 | White | 100-240Vac | 3000K | 2200lm | 100-240V |
| STL22953BR/40 | White | 100-240Vac | 4000K | 2200lm | 100-240V |
| STL22953BR/50 | White | 100-240Vac | 5000K | 2200lm | 100-240V |

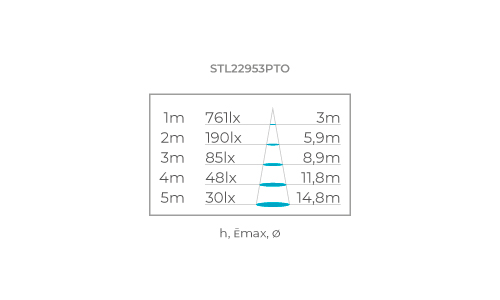

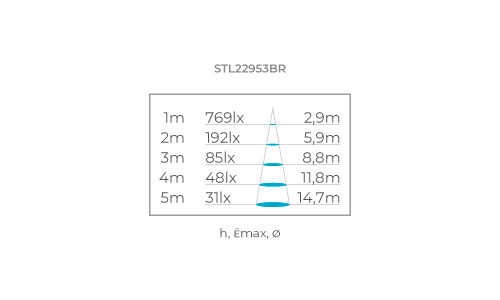

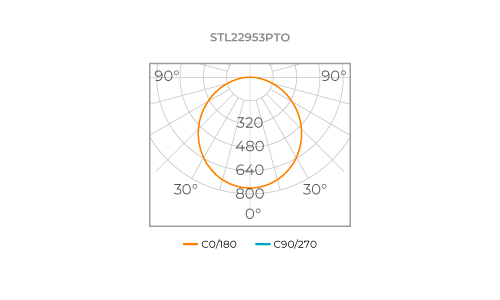

Graphics

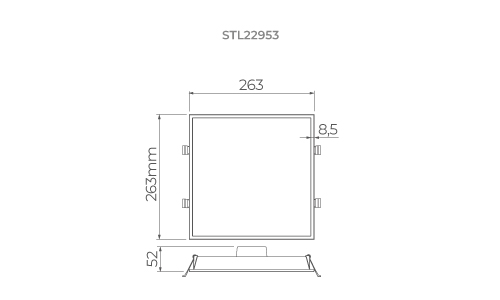

Technical drawing
Documents
STELLA - STL22953PTO-30 - EDGE 20W.ies
STELLA - STL22953BR-30-40-50 - STL22953PTO-30-40 - EDGE 20W_PACK.zip
STL22953BR_30_40_50_STL22953PTO_30_40.skp
Manual Painel de Embutir Edge STL22951_STL22952_STL22953_STL22954_V2-0.pdf
STL22953BR_30_40_50_STL22953PTO_30_40.rfa
STELLA - STL22953PTO-40 - EDGE 20W.ies
STELLA - STL22953BR-30 - EDGE 20W.ies
STELLA - STL22953BR-40 - EDGE 20W.ies
STELLA - STL22953BR-50 - EDGE 20W.ies
Observations
Fixation clips included.
Built-in driver.
STL22953BR/40, STL22953BR/50, STL22953PTO/30, STL22953PTO/40 - Product available while stocks last.
