DEEP
Recessed Panel
Recessed Panel
22W
Power1750lm
Luminous flux120°
Beam anglePATENTED PRODUCT
The super-thin edges and the straight lines of the Deep Recessed Panels provide a timeless aspect to environments, uniting the practicality of panels with the precise design from Stella. The 20mm recess of the light source minimizes light reflection, and consequently glare effects.
| Luminous efficacy | 68lm/W to 84lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STH8904PTO/30 | Black | 100-240Vac | 3000K | 1500lm |
| STH8904BR/30 | White | 100-240Vac | 3000K | 1750lm |
| STH8904PTO/40 | Black | 100-240Vac | 4000K | 1550lm |
| STH8904BR/40 | White | 100-240Vac | 4000K | 1800lm |
| STH8904BR/57 | White | 100-240Vac | 5700K | 1.850lm |
| STH8904BR/50 | White | 100-240Vac | 5000K | 1850lm |
Photos

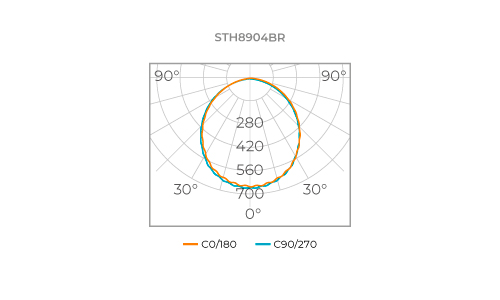

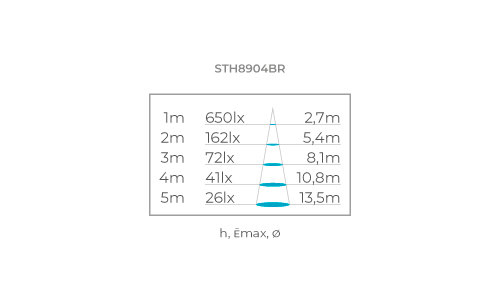

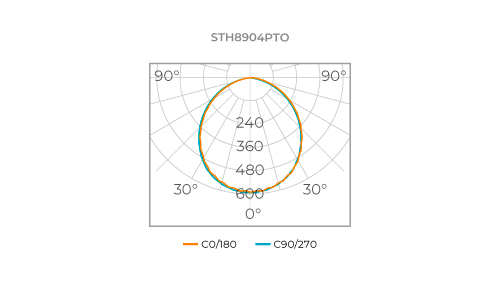

Graphics

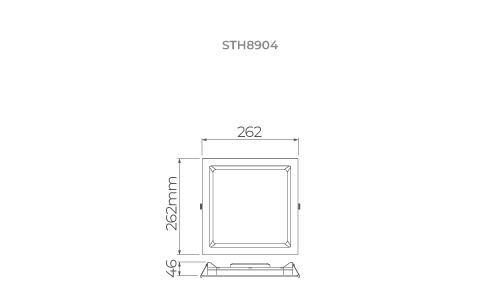

Technical drawing
Documents
STELLA - STH8904PTO-30 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
STELLA - STH8904BR-30-40-50-57 - STH8904PTO-30-40 - DEEP.zip
Manual Luminaria Deep STH8902_STH8903_STH8904_STH8905_V10-0.pdf
STH8904BR_30_40_50_57_STH8904PTO_30_40.rfa
STELLA - STH8904BR-30 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
STELLA - STH8904PTO-40 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
STH8904BR_30_40_50_57_STH8904PTO_30_40.skp
STELLA - STH8904BR-40 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
STELLA - STH8904BR-57 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
STELLA - STH8904BR-50 - PAINEL DE EMBUTIR RECUADO DEEP 24W.ies
Observations
Fixation clips included.
Built-in driver.
STH8904BR/57 - Product available while stocks last.
