PLANE
SURFACE MOUNTED LINEAR FIXTURE
SURFACE MOUNTED LINEAR FIXTURE
17W
Power1800lm (∠360°)
Luminous flux140°
Beam anglePATENTED PRODUCT
With its standout clean design, Plane offers an optimal performance for ambient lighting, featuring a greater illuminated surface for all its models. Available for surface mounting, Stella’s new series offers the convenience of a quick fixing connection system and is compatible with its own Suspension Kit.
| Luminous efficacy | 112lm/W to 125lm/W |
| CRI (Color rendering index) | >80(R9 >N/A) |
| Power factor | > |
| Lifespan (L70) | 30000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STL23931/30 | White | 100-240Vac | 3000K | 1800lm |
| STL23931/40 | White | 100-240Vac | 4000K | 1900lm |
| STL23931/50 | White | 100-240Vac | 5000K | 2000lm |
3D
Click to move image
Graphics

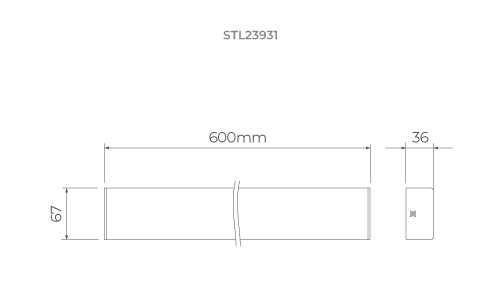

Technical drawing
Documents
STELLA - STL23931-30 - LUMINARIA DE SOBREPOR PLANE 60CM.ies
STL23931_30_40_50.skp
STELLA - STL23931-30 - PACK - SKP.zip
STL23931_30_40_50.rfa
Manual_Luminária_Plane_V4.pdf
STELLA - STL23931-40 - LUMINARIA DE SOBREPOR PLANE 60CM.ies
STELLA - STL23931-40 - PACK - SKP.zip
STELLA - STL23931-50 - LUMINARIA DE SOBREPOR PLANE 60CM.ies
STELLA - STL23931-50 - PACK - SKP.zip
Observations
Fixation clips included.
Built-in driver
