Fita 12V Eco

12V ECO LED Strip

5W/m

Power/m

500lm/m

Luminous flux/m

With a 12V voltage, Stella's ECO LED Strips provide soft lighting and IP67 options, ideal to be used in external spaces.

* PRODUCTS AVAILABLE WHILE STOCKS LAST.

Total power	25W
Luminous flux total	2500lm and 2750lm
LED specifications	60 LEDs SMD2835/m
CRI (Color rendering index)	>80
Lifespan (L70)	15000h
Roll lenght	5m
Operation temperature	-10 ~ 40°C
Warranty	2 years

Compare

STH7804/65	12Vcc	6500K	Cool-white	550lm/m
STH7804/30	12Vcc	IP20	3000K	Warm white	500lm/m

Photos

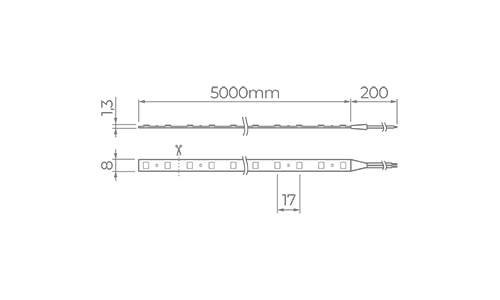

Technical drawing

Documents

STELLA - STH7804-65 - Fita ECO 12V 5W-m.ies

STELLA - STH7804-65 - PACK - SKP.zip

Manual STH7804_STH7814_MANUAL_V51 (1).pdf

STELLA - STH7804-30 - Fita ECO 12V 5W-m.ies

Observations

- To be used only with Stella's Drivers and accessories. The product's warranty does not apply if it is used with other Drivers and/or accessories.
- Dimming is possible when using a dimmable Stella LED Driver
- The product must only be installed on clean and dry surfaces.
- It is essential that electrical installations be carried out by qualified professionals
- Use the LED Strip completely unrolled and can only be cut at every 5cm (according to the markers on the strip)
- To avoid loses of total luminous flux, don't connect more than 5m of a 12V LED Strip in series.

Products available while stocks last.
