DEEP
RECESSED SURFACE MOUNTED PANEL
RECESSED SURFACE MOUNTED PANEL
17W
Power1700lm
Luminous flux100°
Beam anglePATENTED PRODUCT
Stella brought together functionality and design when developing the Deep line. This panel has a slightly curved recess. An exclusive installation system by click, developed by Stella, facilitates the product’s application on the ceiling. Deep has no side openings, preventing inconveniences, such as accumulation of dust inside the panel. Installation without visible screws.
| Luminous efficacy | 100lm/Wlm/W and 106lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL24913BR/30 | White | 100-240Vac | 3000K | 1700lm | 100-240V |
| STL24913BR/40 | White | 100-240Vac | 4000K | 1800lm | 100-240V |
3D
Click to move image
Graphics

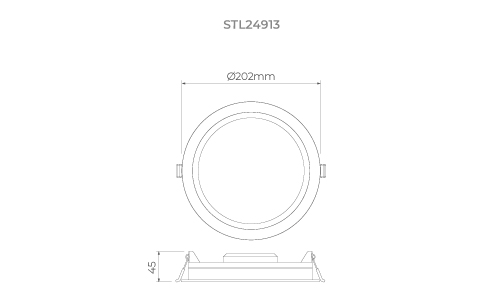

Technical drawing
Documents
STELLA - STL24913BR-30 - PAINEL DE EMBUTIR RECUADO DEEP REDONDO 17W.ies
STELLA - STL24913BR-30-40 - PAINEL DE EMBUTIR RECUADO DEEP REDONDO 17W_PACK.zip
STL24913BR_30_40.skp
Manual_Deep_-_Luminária_de_Embutir_Recuada_V2.pdf
STL24913BR_30_40.rfa
STELLA - STL24913BR-40 - PAINEL DE EMBUTIR RECUADO DEEP REDONDO 17W.ies
Photos
Not added.
Observations
Fixation clips included.
Built-in driver.
