Wall Micro
WALL-MOUNTED PATH-LIGHT | 1 NARROW BEAM
WALL-MOUNTED PATH-LIGHT | 1 NARROW BEAM
2,5W
Power10lm
Luminous flux4°
Beam anglePATENTED PRODUCT
The Wall Micro path-light has a clear and accurate light beam, within an extremely compact body that fits in your hand. These products have an integrated light source and a fixation system that facilitates installation and eliminates apparent screws.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,8 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH21729PTO/30 | Black | 100-240Vac | 3000K | 10lm |
| STH21729BR/30 | White | 100-240Vac | 3000K | 10lm |
Video
Graphics

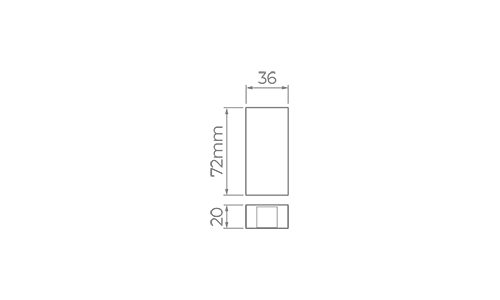

Technical drawing
Documents
STELLA - STH21729PTO-30 - WALL MICRO FACHO FECHADO.ies
STELLA - STH21729BR-30 - STH21729PTO-30 - WALL MICRO FACHO FECHADO_PACK.zip
STH21729BR_30_STH21729PTO_30.skp
Manual Arandela Wall Mini Wall Micro STH9730BR STH9730PTO STH9731BR STH9731PTO STH9732BR STH9732PTO STH21728BR STH21728PTO STH21729BR STH21729PTO_V7.pdf
STH21729BR_30_STH21729PTO_30.rfa
STELLA - STH21729BR-30 - WALL MICRO FACHO FECHADO.ies
Observations
Indicated accessory: Mini Junction Box - STH7799, sold separately.
Built-in driver.
