SURFACE MOUNTED PANEL EVO
BACKLIGHT UGR 19
BACKLIGHT UGR 19
30W
Power2300lm
Luminous flux90°
Beam angle
Recessed and Surface Mounted EVO Panels offer Backlight (UGR19), anti-glare lenses, LEDs directed downwards and a high Color Rendering Index (CRI). This product was designed to provide greater lighting comfort to illuminate spaces like work environments and classrooms.
| Luminous efficacy | 77lm/W and 80lm/W |
| CRI (Color rendering index) | >90(R9 >50) |
| Power factor | >0,92 |
| UGR (Unified glare rating) | <19 |
| Lifespan (L70) | 25000h |
| Prevailing material | Aluminum or Alumínio |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STH21967/30 | White | 100-240Vac | 3000K | 2300lm |
| STH21967/40 | White | 100-240Vac | 4000K | 2400lm |
| STH21967/57 | Branco | 100-240Vac | 5700K | 2400lm |

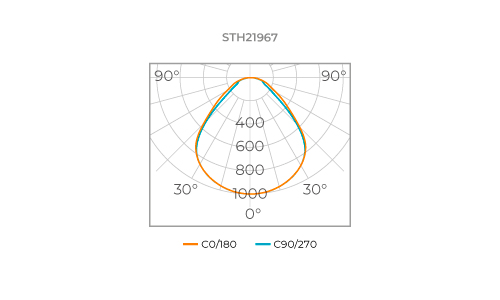

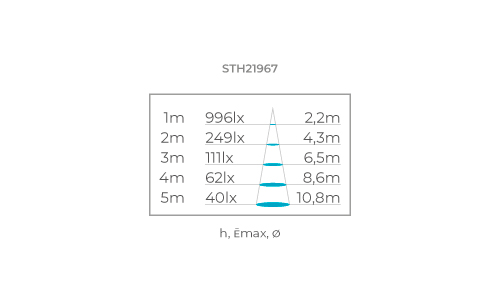

Graphics

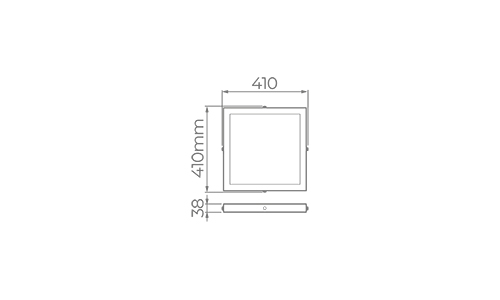

Technical drawing
Documents
STELLA - STH21967-30 - PLAFON DE SOBREPOR EVO 30W.ies
STH21967_30.skp
STELLA - STH21967-30 - PACK - SKP.zip
Manual_Plafon de sobrepor Evo Backlight UGR19 Versão 1.pdf
STH21967_30_40.rfa
STELLA - STH21967-40 - PLAFON DE SOBREPOR EVO 30W.ies
STH21967_30_40.skp
STELLA - STH21967-40 - PACK - SKP.zip
STELLA - STH21967-57 - PLAFON DE SOBREPOR EVO 30W.ies
STH21967_30_40_57_SKETCHUP.zip
Observations
Driver Included.
STH21967/30, STH21967/40 - Product available while stocks last.
