MINI NEU 2
WALL-MOUNTED PATH-LIGHT
WALL-MOUNTED PATH-LIGHT
1,5W
Power40lm
Luminous flux60°
Beam anglePATENTED PRODUCT
Compact, elegant and extremely thin. The Neu 2 family delivers a new concept of all-mounted path lights, combining the aesthetics of built-in products to the racticality of surface-mounted path-lights, creating a unique and original design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,4 |
| Operation temperature | -20 ~ 60°C |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH8746/30 | Black | 100-240Vac | 3000K | 40lm |
| STH8745/30 | White | 100-240Vac | 3000K | 40lm |
3D
Click to move image
Photos
Graphics

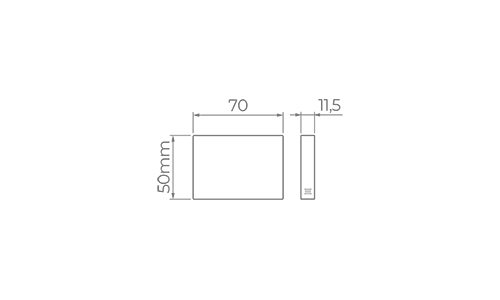

Technical drawing
Documents
STELLA - STH8746-30 - MINI NEU 2.ies
STH8745_30_STH8746_30.skp
STELLA - STH8746-30 - PACK - SKP.zip
Manual_Mini_Neu_2_V6.pdf
STH8745_30_STH8746_30.rfa
STELLA - STH8745-30 - MINI NEU 2.ies
STELLA - STH8745-30 - PACK - SKP.zip
STELLA - STH8746-30-EU - PACK - SKP.zip
STELLA - STH8745-30-EU - PACK - SKP.zip
Observations
Built-in driver.
