DEEP
Recessed Panel
Recessed Panel
17W
Power1400lm
Luminous flux120°
Beam anglePATENTED PRODUCT
The super-thin edges and the straight lines of the Deep Recessed Panels provide a timeless aspect to environments, uniting the practicality of panels with the precise design from Stella. The 20mm recess of the light source minimizes light reflection, and consequently glare effects.
| Luminous efficacy | 71lm/W to 88lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH8903BR/30 | White | 100-240Vac | 3000K | 1400lm | 100-240V |
| STH8903BR/40 | White | 100-240Vac | 4000K | 1450lm | 100-240V |
| STH8903PTO/30 | Black | 100-240Vac | 3000K | 1200lm | 100-240V |
| STH8903PTO/40 | Black | 100-240Vac | 4000K | 1250lm | 100-240V |
| STH8903BR/50 | White | 100-240Vac | 5000K | 1500lm | 100-240V |
3D
Click to move image
Graphics

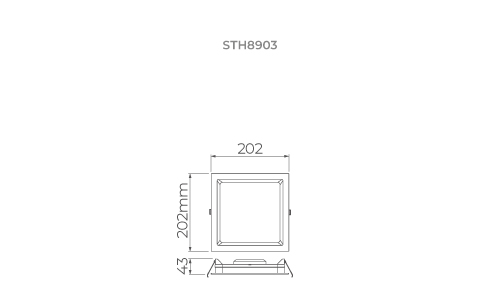

Technical drawing
Documents
STELLA - STH8903BR-30 - PAINEL DE EMBUTIR RECUADO DEEP 18W.ies
STELLA - STH8903BR-30-40-50 - STH8903PTO-30-40 - PAINEL DE EMBUTIR RECUADO DEEP 18W_PACK.zip
STH8903BR_30_40_50_STH8903PTO_30_40.skp
Manual Luminaria Deep STH8902_STH8903_STH8904_STH8905_V10-0.pdf
STH8903BR_30_40_50_STH8903PTO_30_40.rfa
STELLA - STH8903BR-40 - PAINEL DE EMBUTIR RECUADO DEEP 18W.ies
STELLA - STH8903PTO-30 - PAINEL DE EMBUTIR RECUADO DEEP 18W.ies
STELLA - STH8903PTO-40 - PAINEL DE EMBUTIR RECUADO DEEP 18W.ies
STELLA - STH8903BR-50 - PAINEL DE EMBUTIR RECUADO DEEP 18W.ies
Photos
Not added.
Observations
Fixation clips included.
Built-in driver.
